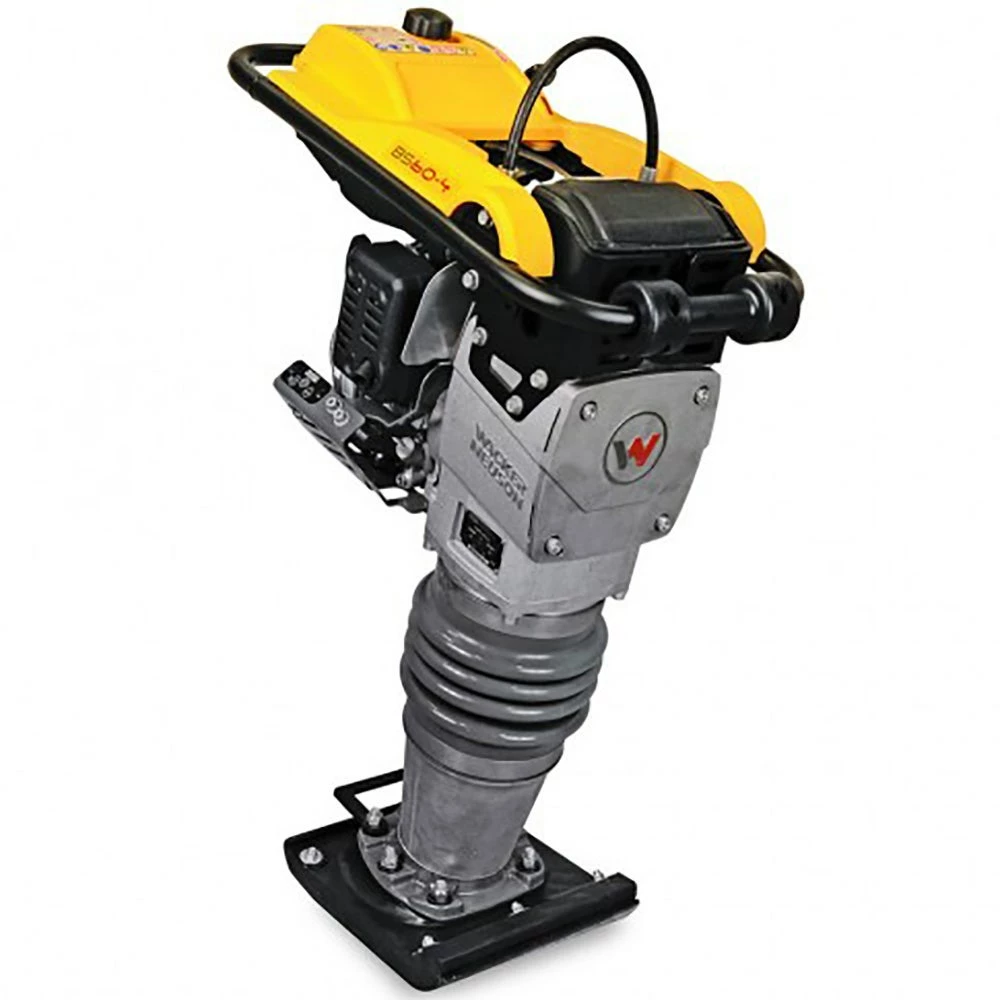

WACKER NEUSON Vibratory Rammer BS60-4As 5100030605

• Wacker Neuson is the inventor of vertical rammers and has been manufacturing them for over 80 years!
• Ease of use due to having throttle, start/stop and full shut off at the touch of a finger. Certified lifting point that won’t bend and gives plenty of room for a crane hook
• Attached to the crank housing, not the operators handle which causes stress on the mounts and welds
• Ensures perfect supply of air to the engine and is very low maintenance. Designed for serviceability, lower down times and costs
• Narrow design ensures versatility, safety and ease of use when in tight areas
• High impact plastic ramming shoe, reinforced with steel plate is specially designed for Wacker Neuson rammers
• The unique design ensures the perfect blend of balance and travel speed. Vertical rammers need to lean forward to better travel speeds
• The WM100 is a powerful and robust 4 stroke engine which is specially designed for our rammers
• It is not an off the shelf engine designed for multiple applications and uses
• Vertical rammers are unique and require a unique engine
• The patened oil alert with LED warning light will stop the engine when engine oil level is low

Specifications

• Engine/motor: Honda GXR 120
• Engine/motor type: Air-cooled single-cylinder four-cycle gasoline engine
• Displacement: 120cm³
• Rated performance: 2.7kW
• Motor run speed: 4100rpm
• Fuel tank capacity: 2.9L
• Fuel consumption: 1l/h
• Percussion rate: 656bpm
• Stroke on the ramming shoe: 65mm
• Impact force: 18kN
• Operating speed: 8.8m/min
• Surface capacity – compaction: 148m²/h
• Ramming shoe size (W x L): 280mm x 340mm
• Dimensions (L x W x H): 673mm x 343mm x 965mm
• Weight: 72kg
