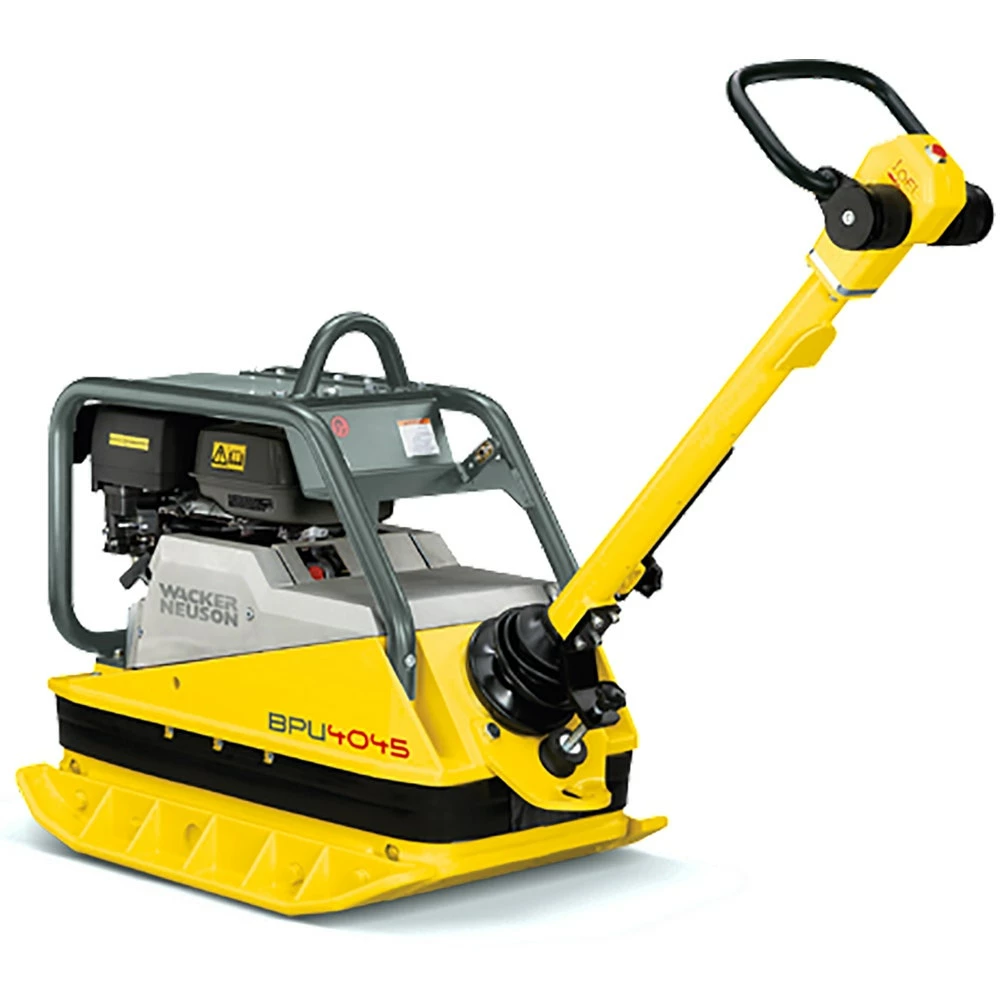

WACKER NEUSON 600x1240mm Compactor Plate BPU4045A

It is perfectly suited for the compaction of building back-fill, and of frost and sub bases when constructing roads, paths and parking lots. The 69 Hz frequency makes the BPU 4045 suitable for all purposes and compacts even medium-weight interlocking paving stone reliably.

• Intuitive guide handle design: The operator changes the direction of travel and speed simply by moving the handle forwards and backwards.
• Infinitely variable forward and reverse operation including spot compaction for easy maneuverability. Ideal for trenches and over large areas.
• Comprehensive comfort features: e.g. low oil shut off and maintenance-free alternator.
• The large gasoline engine with its high reserve capacity ensures great efficiency and a long service life.
• The BPU 4045 is equipped with a recoil starter. Different extension plates provide a variety of operating widths.

Operating Specifications

• Operating weight: 322.05 kg
• Centrifugal force: 8,992 lbf
• Base plate size (W x L): 450 x 900 mm
• Base plate thickness: 12.7 mm
• Height (without guide handle): 724 mm
• Operating width (without extension plate): 450 mm
• Operating width (with extension plate): 15,494 mm
• Frequency: 69 Hz
• Advance travel max. (depending on soil and environmental factors): 78.7 ft/min
• Surface capacity max. (depending on soil and environmental factors): 9,300 ft²/h

Engine:

• Engine / Motor type: Air-cooled single-cylinder, four-cycle gasoline engine
• Engine / Motor manufacturer: Honda
• Engine / Motor: GX 270
• Displacement: 16.5 in³
• at rpm: 3,600 rpm
• Operating performance max. (DIN ISO 3046): 8 hp
• Operating performance (DIN ISO 3046): 6.2 hp
• at rpm: 2,600 rpm
• Fuel consumption: 0.42 US gal/h
• Tank capacity (fuel): 5.6 US qt
• Power transmission: From drive motor via centrifugal clutch and V-belt direct to exciter.
