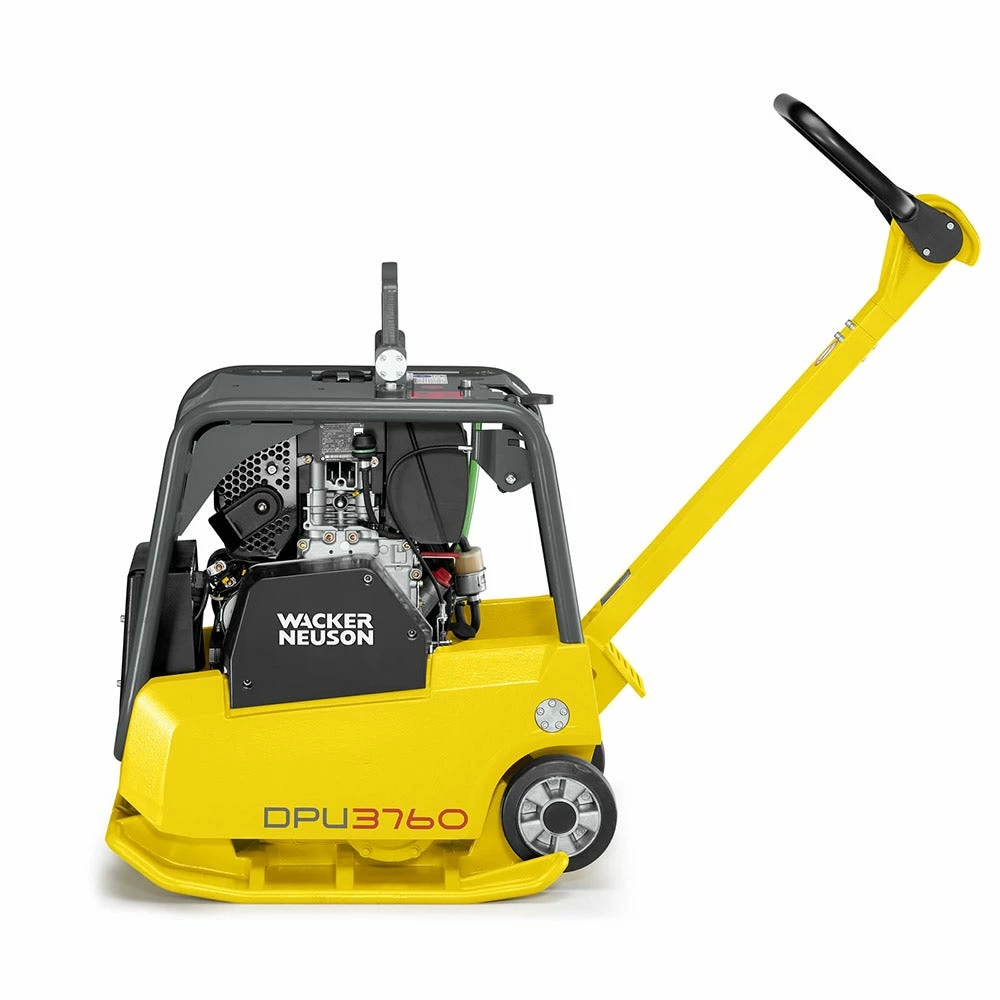

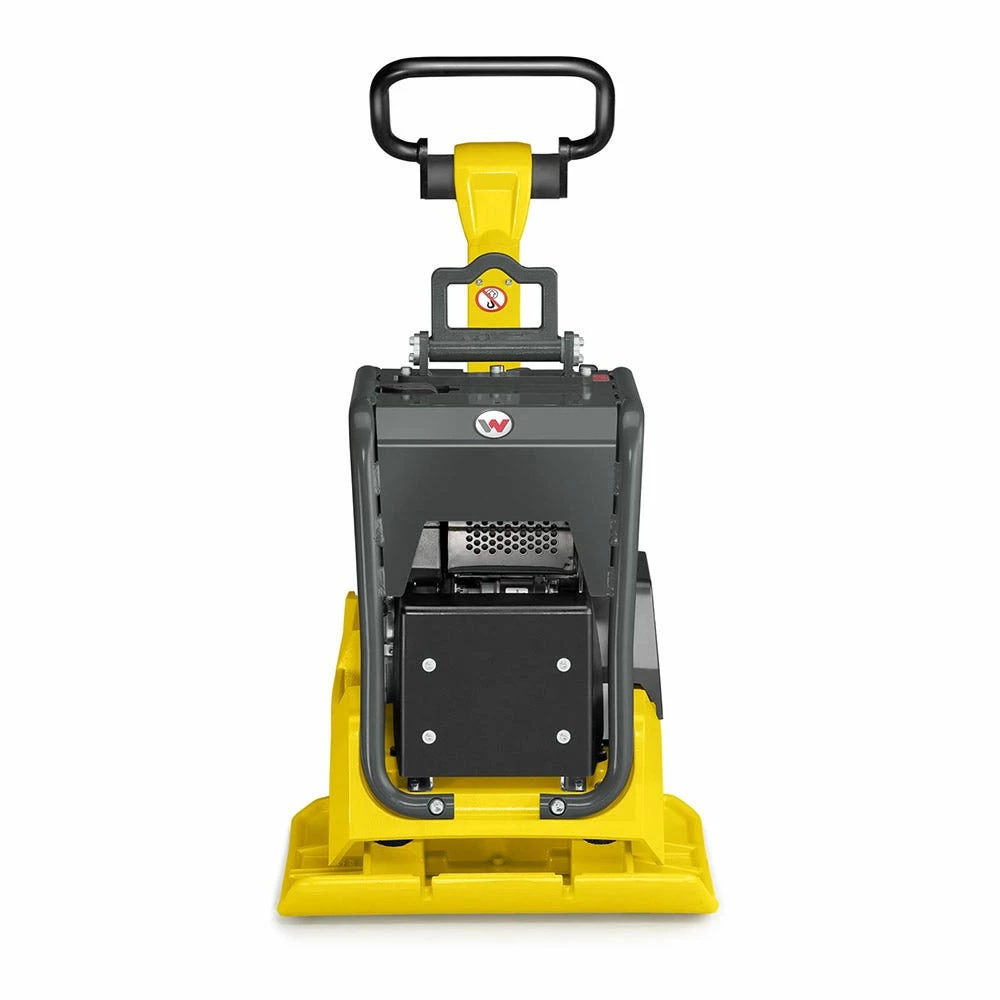

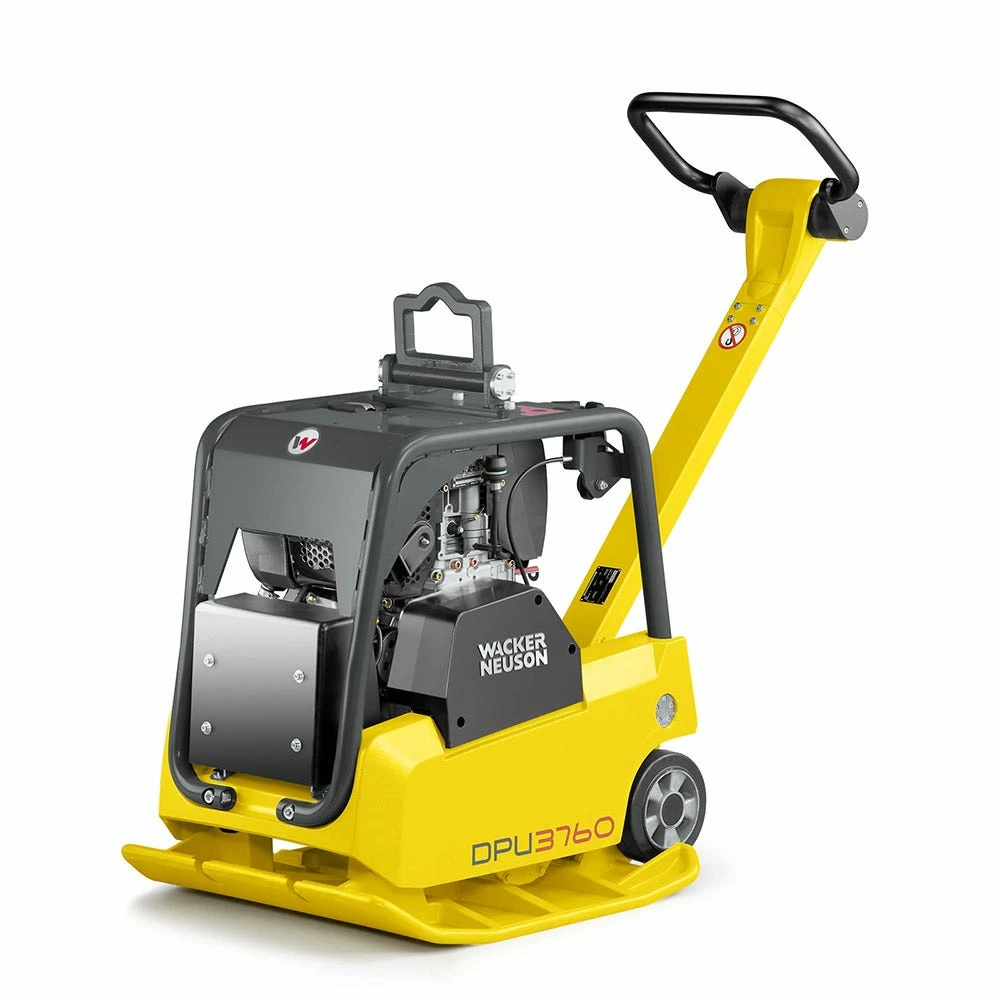

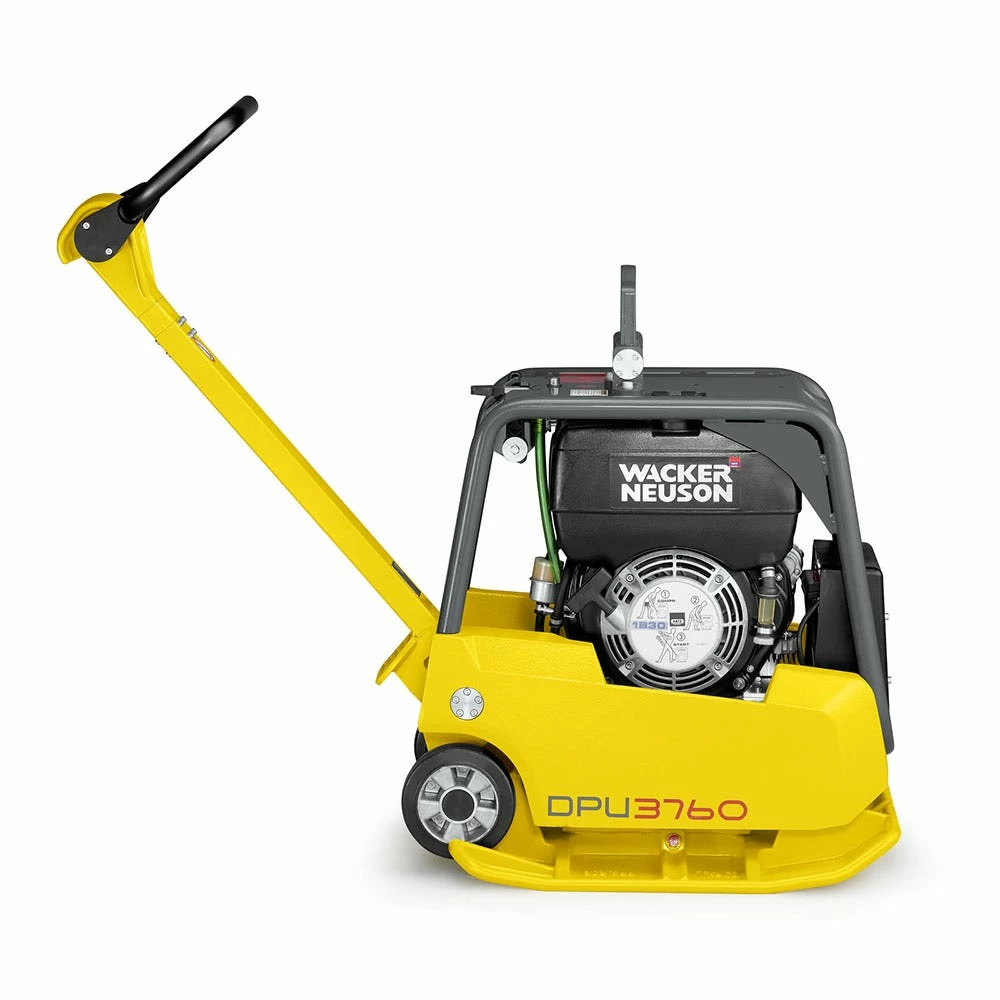

WACKER NEUSON 600x1143mm Compactor Plate DPU3760HE

DPU3760 offers a perfect combination of power and versatility with integrated wheels for transport around job site. Mid range in size with high travel speed and high centrifugal force of 37kN makes this plate perfect for road maintenance, compacting paving stones, landscaping and paths. It is powered by a reliable Hatz Disesel Engine with electric start.

• Wacker Neuson has been making construction equipment for over 160 year with proven engineering experience.
• Powered by a Genuine Hatz Diesel engine.
• Long life air filters fitted for low maintenance.
• Specially designed exciter bearings for maintenance free service.
• Robust GJS-700 cast base plate.
• Ergonomic control handle for extended use without fatigue.
• High travel speeds.
• Guide handle shock mount and integrated lateral guide.
• Forward / reverse easily operated from handle.
• Electric start engine.
• Compact design allows for easy use in tight spaces.
• Forward and reverse direction from handle.
• Integrated wheels for jobsite transport.:
• Dampened operator handle for extended use.
• Central lifting point for crane use.
• Starter rope is positioned so if the plate takes off on starting it will take off away from the operator.
• Electric start for low operator strain.
• Automatic locking mechanism on handle.

Operating Specifications

• Operating weight: 274 kg
• Centrifugal force: 37 kN
• Base plate size (W x L): 600 x 703 mm
• Base plate thickness: 10mm
• Height (without guide handle): 758 mm
• Frequency: –
• Advance travel (depending on soil): 26 m/min
• Surface capacity (depending on soil): 936 m2/h

Engine:

• Manufacturer: Hatz
• Model: 1 B 30
• Construction: Air-cooled, single-cylinder diesel
• Displacement: 347 cm3
• Engine speed: 3,600 rpm
• Engine output according to ISO: 5.4 kW (7.2HP)
• Fuel consumption: 0.6 L/h
• Tank capacity: 5.0 L
