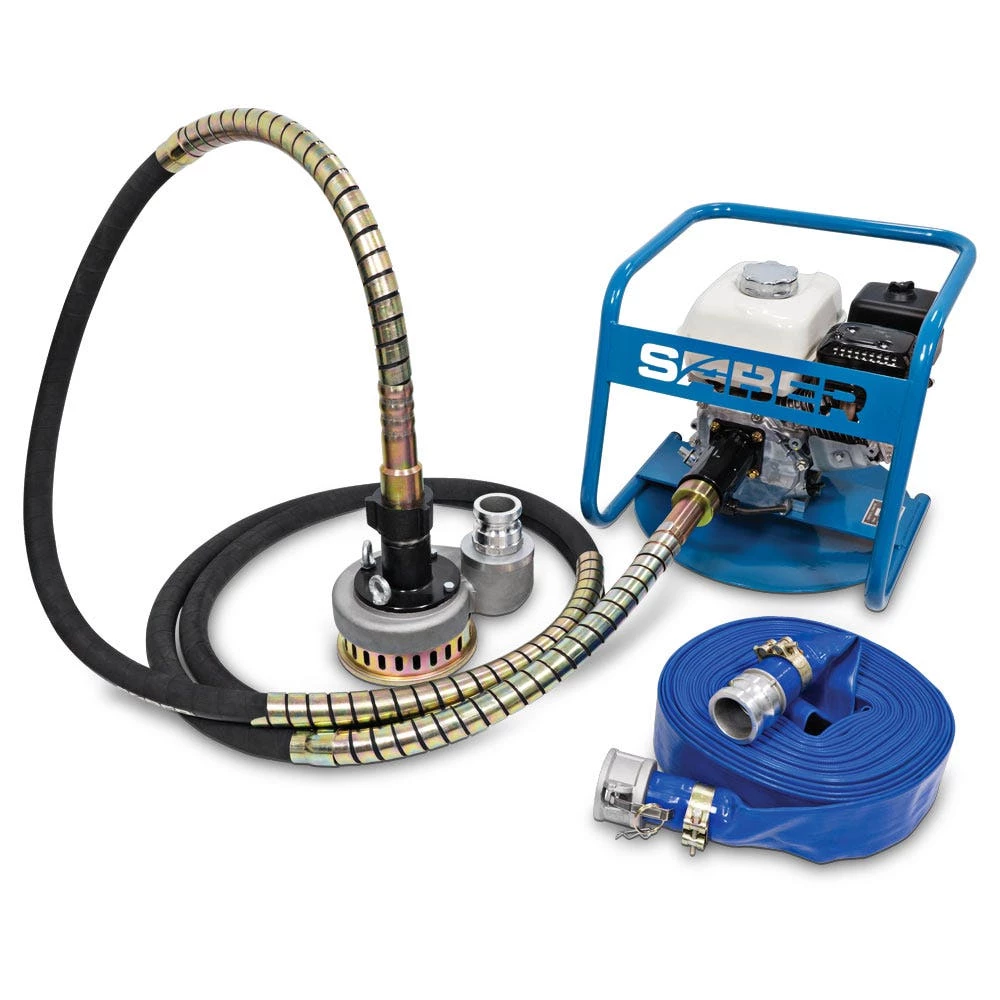

SABER 5.5HP Honda C-Frame Unit W/ 6m Submersible Pump

• Genuine HONDA GX160 5.5hp engine
• C-type frame
• Suitable for use with SABER flexible shaft vibrator and pump
• 3-Tooth drive dog connector with quick connect bell housing
• Maximum length 6m flex shaft
• Maximum 28-70mm diameter poker
• Net weight: 26kg
• Compatible with most 3-Tooth drive dog connectors

Specifications:

• Engine: Honda GX160
• Speed: 3600rpm
• Oil Capacity: 0.6L
• Fuel Consumption: 1.4 L/h – 3600 rpm

Includes:

• 1 x Drive Unit
• 1 x Instruction Manual

Heavy duty 50mm (2″) 6m Flex-shaft Submersible Pump for transferring water. Compatible with SABDRU55HON Drive Unit and other Drive Unit brands.

Specifications:

• Max Flow: 1200L/min
• Max Depth: 7m
• Max Head: 15m
• Max Particle Size: 5mm
• Outlet: 2” 50mm Camlock

Flexshaft:

• Drive: 3 – Tooth
• Flex Shaft Length: 6m
• Rubber Tube: 65N/m
• Shaft Inner Core Diam: 12mm
• Shaft Outer Diam: 32mm
• Shaft Wire: 1000N Tensile Steel
• Rotational Speed: 300-3600
• Japanese bearings and oil seal

Layflat Hose:

• Diameter: 2” (50mm)
• Length: 20m
• Fitting: 1x 2” Camlock Coupler | 1x 2” Camlock Male

Includes:

• 6m 50mm 2″ Submersible Water Pump
• Layflat discharge hose
• Instruction Manual
