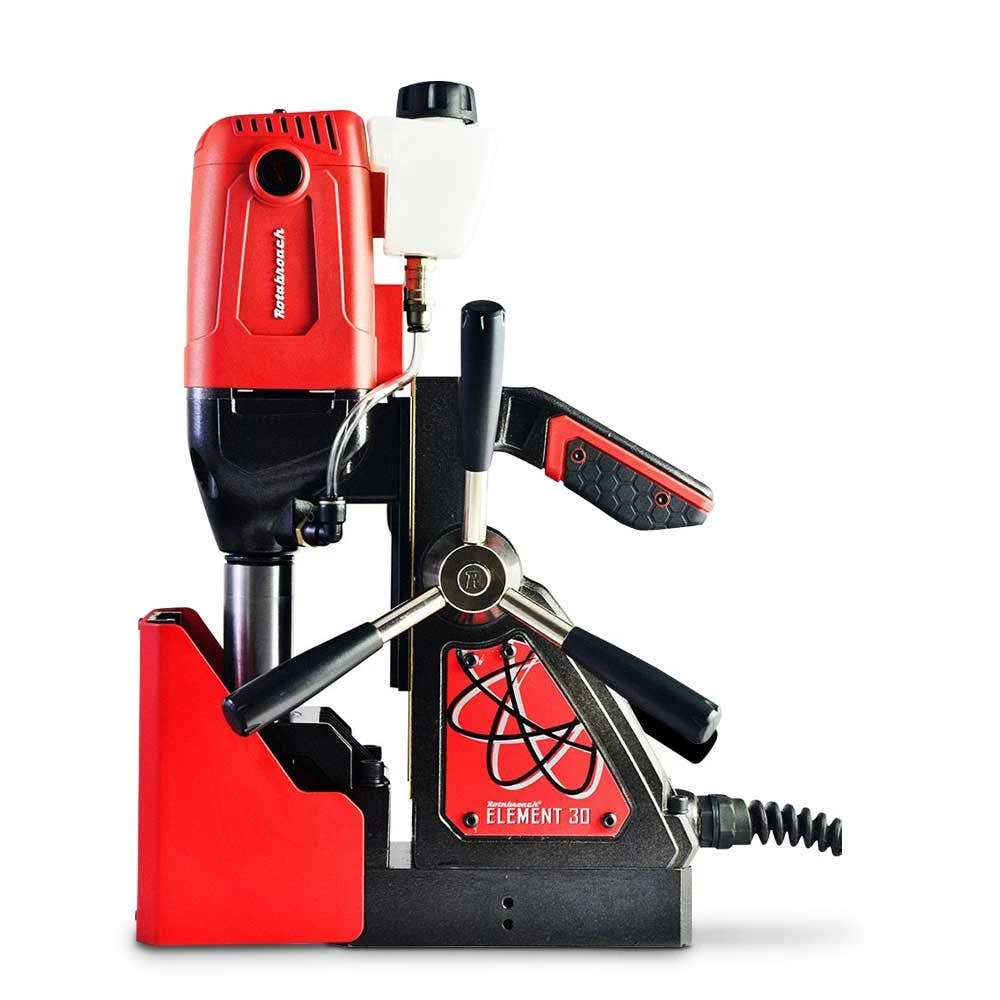

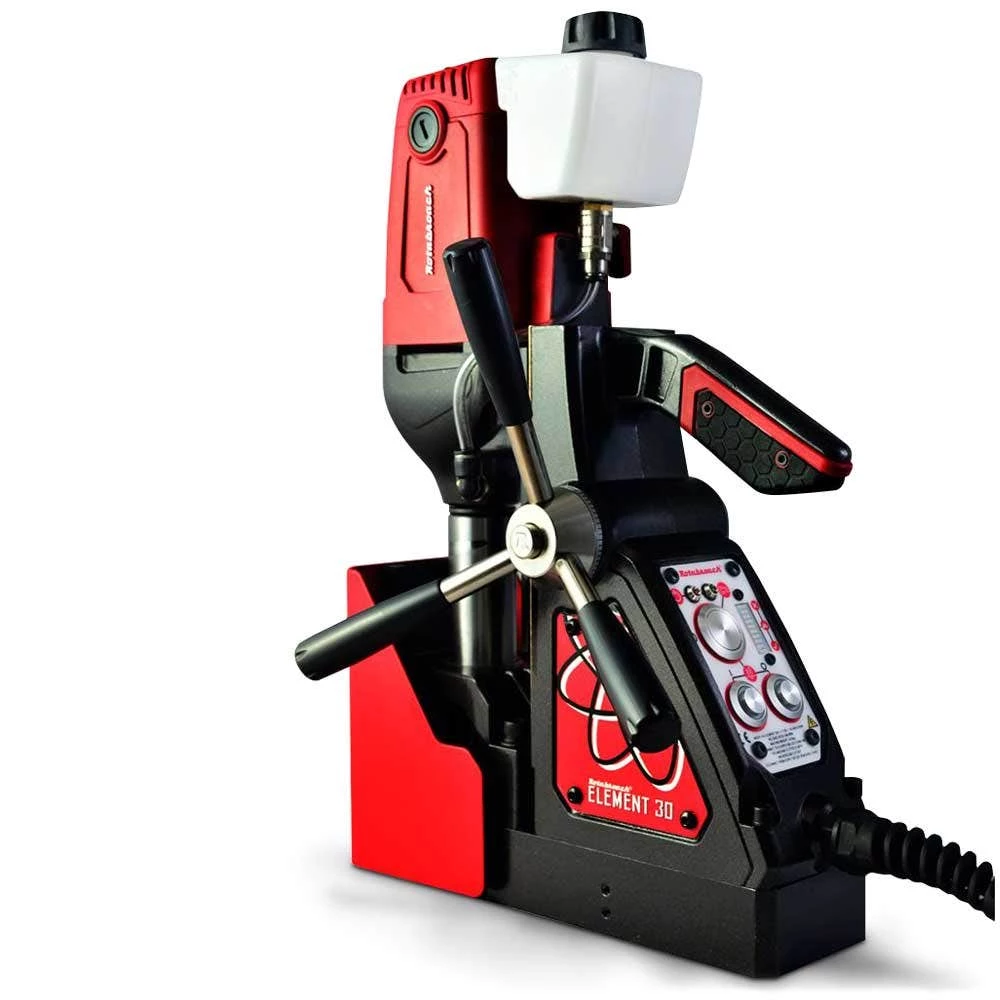

ROTABROACH 850W Magnetic Drill With 5 Piece Cutter Set – ELEMENT303C

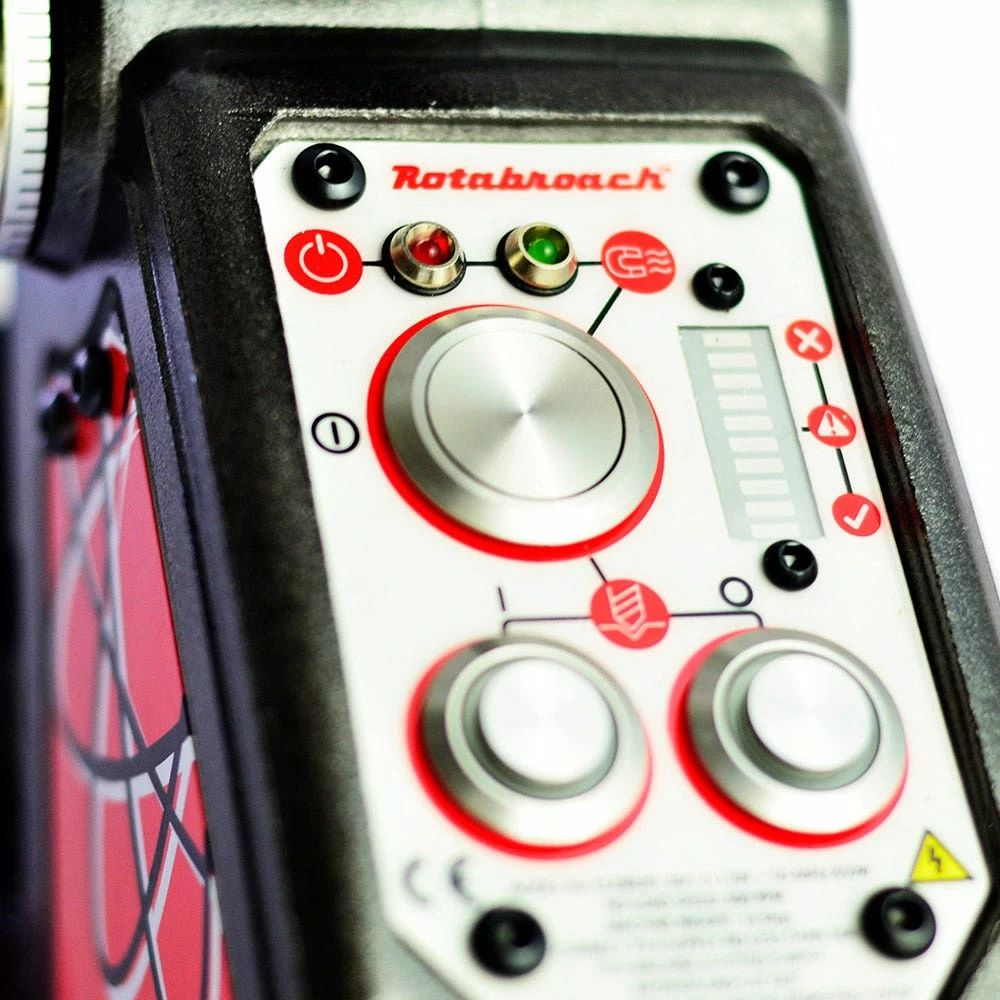

The Element 30 machine is fitted with Rotabroach’s unique CutSmart™ panel designed to increase your tool life and productivity. The CutSmart feature is an ingenious LED traffic light system that detects cutting depth to offer optimum cutting and machine performance. These lights are:

• Green Zone – Perfect, try to keep in the green zone for the best cut and optimum machine performance.
• Yellow Zone – A little too much pressure on the drill, ease off to get back to the green zone.
• Red Zone – Overload: Back off immediately, as too much force will cause the motor to cut off if you continue.

This magnetic drill is a combination of power and portability. This machine is one of the lightest magnetic based drills in the world and is suitable for drilling up to 32mm diameter by 35mm depth.

For more information follow the link https://www.totaltools.com.au/blog/post/introducing-rotabroach-cutting-solutions/

• Cutsmart™ Technology
• Fixed Guard
• Magnetic Detection
• Electronic overload protection light
• High powered magnet
• Ergonomic carry handle
• Quick release capstan arm
• Suitable for drilling up to 32mm diameter by 35mm depth

Specifications:

• Core Bore Diameter: φ32mm Max.
• Twist Drill Bore Diameter: φ13mm Max.
• Cutting Depth: 35mm
• Magnet Size: 165mm x 80mm
• Magnet Strength: 8000N*

*Holding Force at 20°C with 25mm min plate thickness. The use on any material less than 25mm thick will progressively reduce the magnetic performance. If possible, substitute material should be positioned under the magnet and work piece to equate to a suitable material thickness. If this is not possible, an alternative secure method of restraining the machine MUST be used.

Includes

• 850W Magnetic Drill

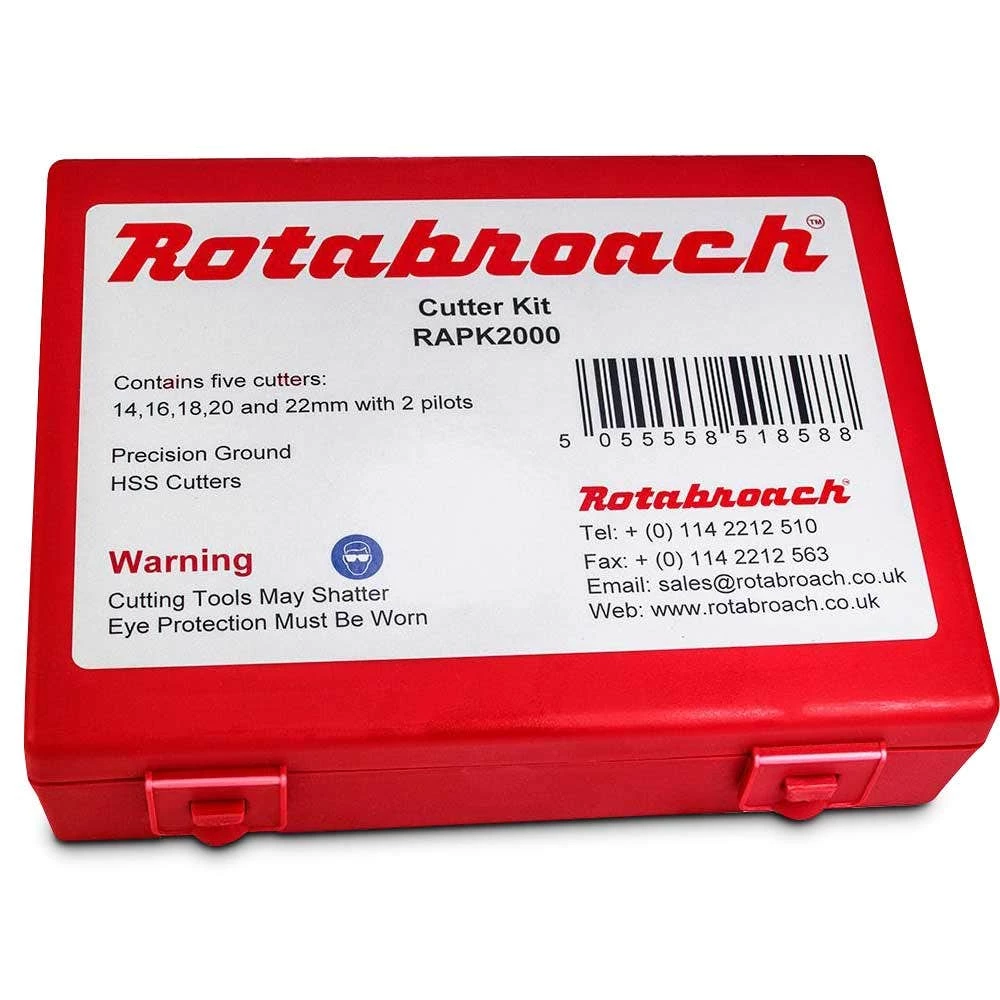

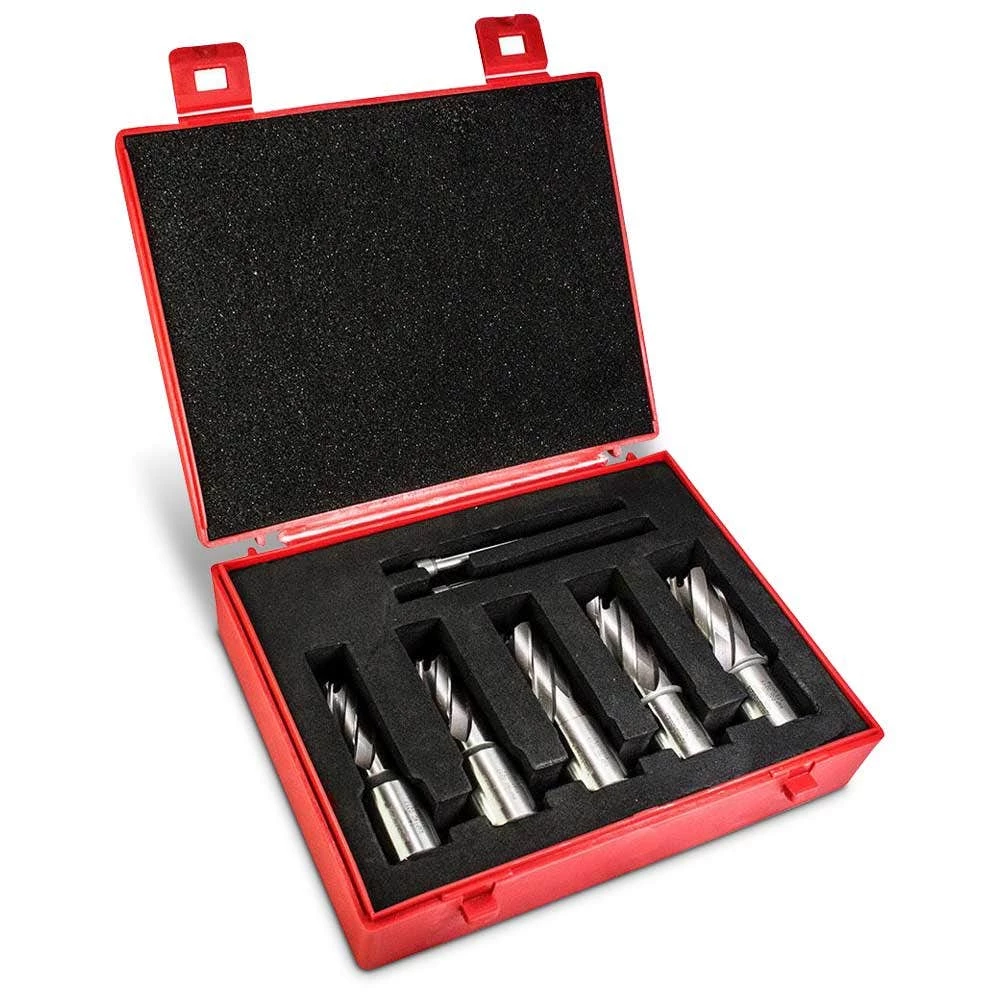

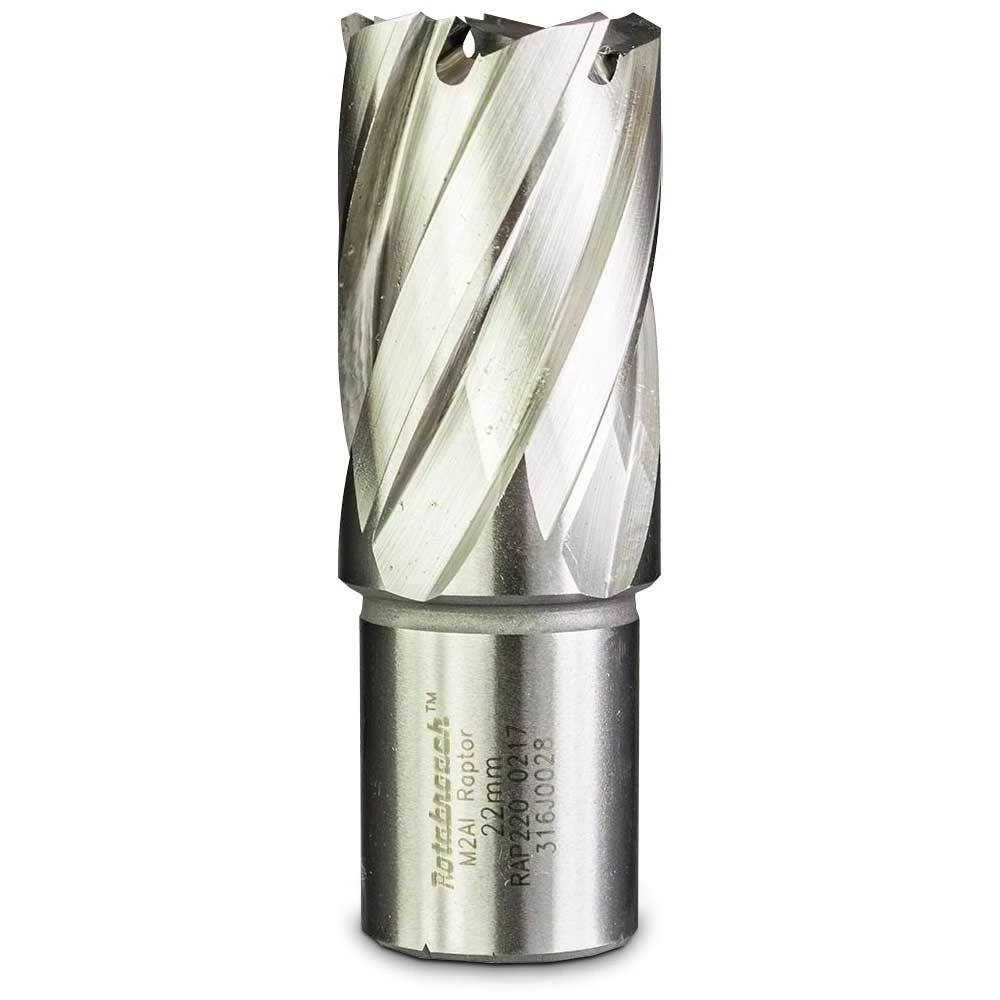

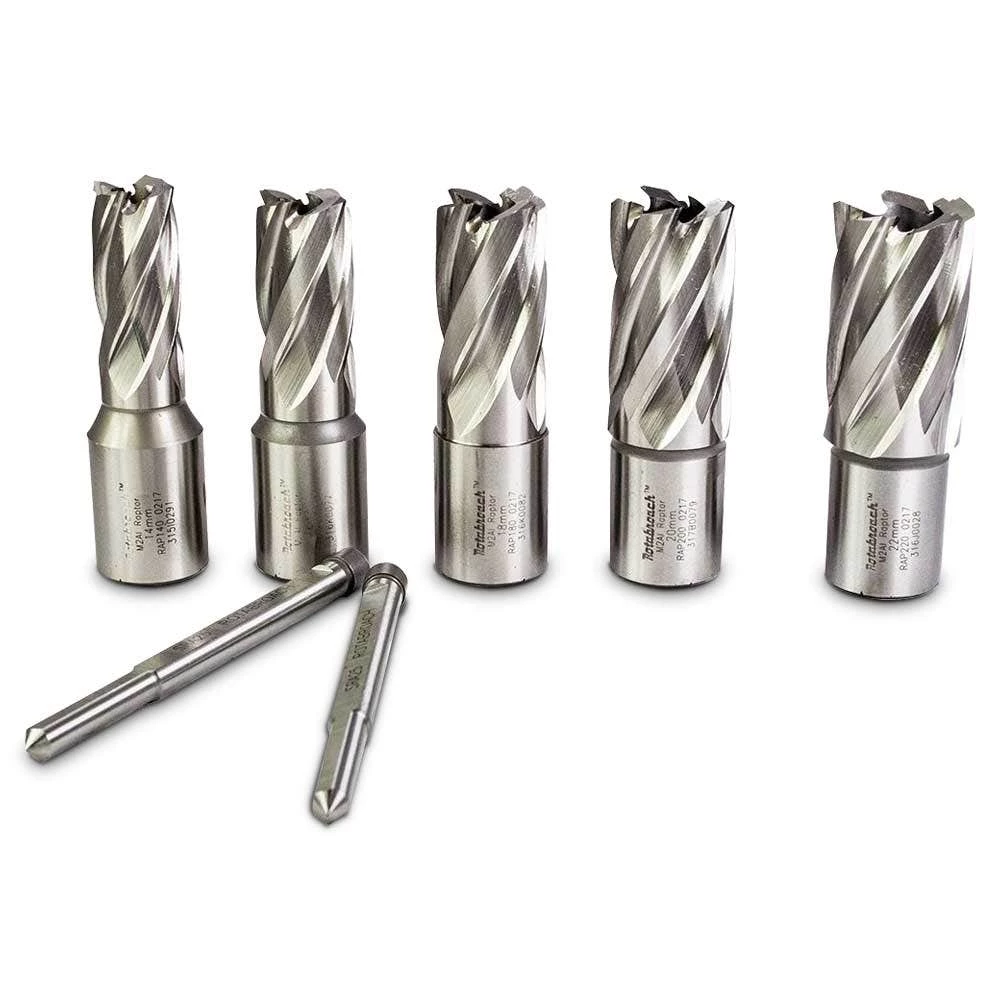

• 5pc Cutter Kit (Annular Cutters: 14, 16, 18, 20, 22mm; 2x Pilot bits; Storage case) (..113679)
• Safety strap
• Safety Glasses
• Chuck and Chuck Adaptor
• Chuck Key
• Tools and carbon brushes
• Carry Case
