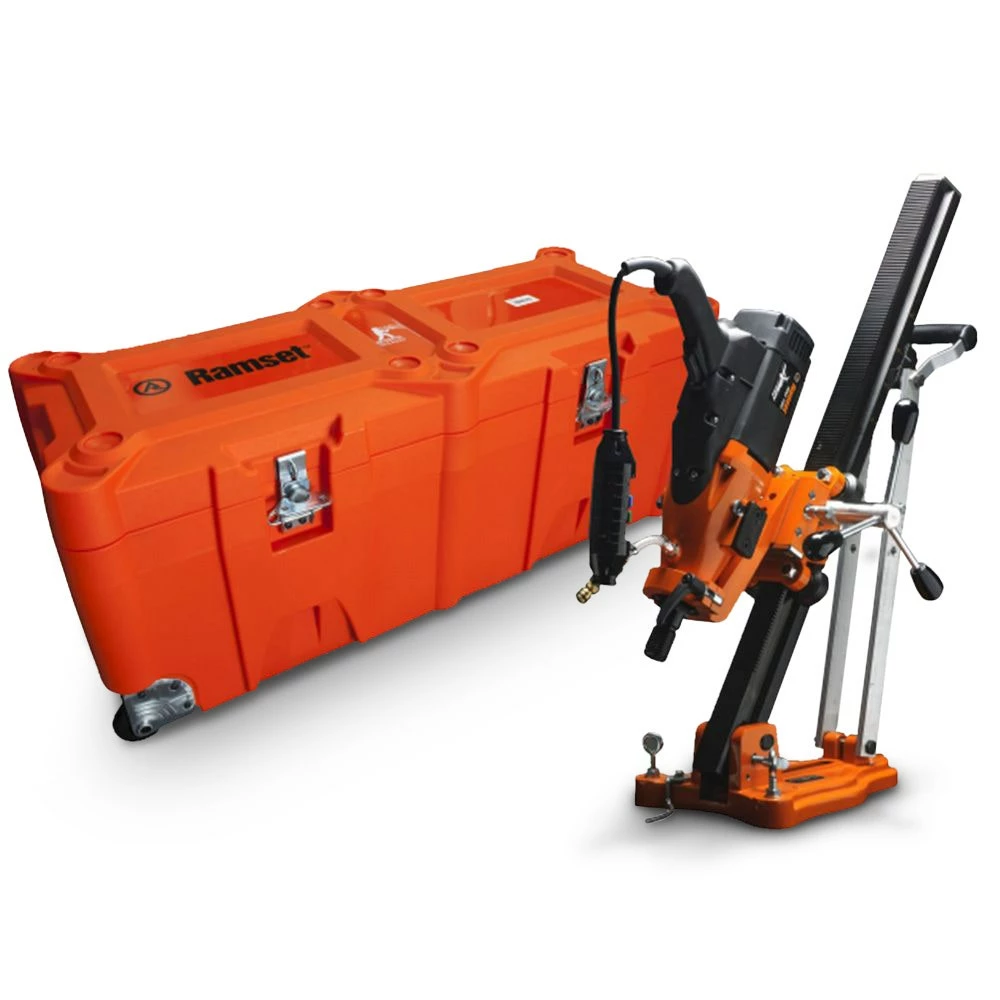

RAMSET 200mm 2000W Drill Core W/Stand Trix160 RM160KIT

A fully integrated diamond core drilling system supplied complete with drilling motor, drilling rig and connection systems. The entire kit is supplied in a robust double walled case.

• Powerful 2000W drilling motor that can be hand held or rig mounted
• Robust drilling rig suitable for drilling up to 200mm diameter
• Heavy duty rotomolded plastic and stainless steel storage case
• Solid recessed wheels for ease of transportation to and from the jobsite
• Integrated transport and carrying handles
• Molde lid enables resting of multiple cases to prevent sliding during transport

Specifications:

Drilling Motor

• Voltage: 240V
• Power Input: 2000W
• Connections:
  • 1/2″ BSP
  • 1 1/4″ UNC
• Motor Speeds:
  • Speed 1
  • Speed 2
  • Speed 3
• Load:
  • 0-660rpm
  • 0-1550rpm
  • 0-3300rpm
• Diameter:
  • 65-131mm
  • 35-60mm
  • 10-30mm
• Cable Length: 5 metres
• Weight: 5.9kg

Drilling Rig

• Height: 880mm
• Length: 340mm
• Width: 250mm
• Weight: 12kg
• Max Drill Depth: 850mm
• Max Core Diameter: 200mm
• Operational Tilt: 0-90°

Kit includes:

• 2000W RM160 Diamond Drill
• TRIX160 Drillng Rig
• Carbide Tipped Drill Bit
• Quick release connector bolts
• Copper rings
• Sharpening stone
• DynaSet punch
• Spanner set
• Water connector
• Grease
