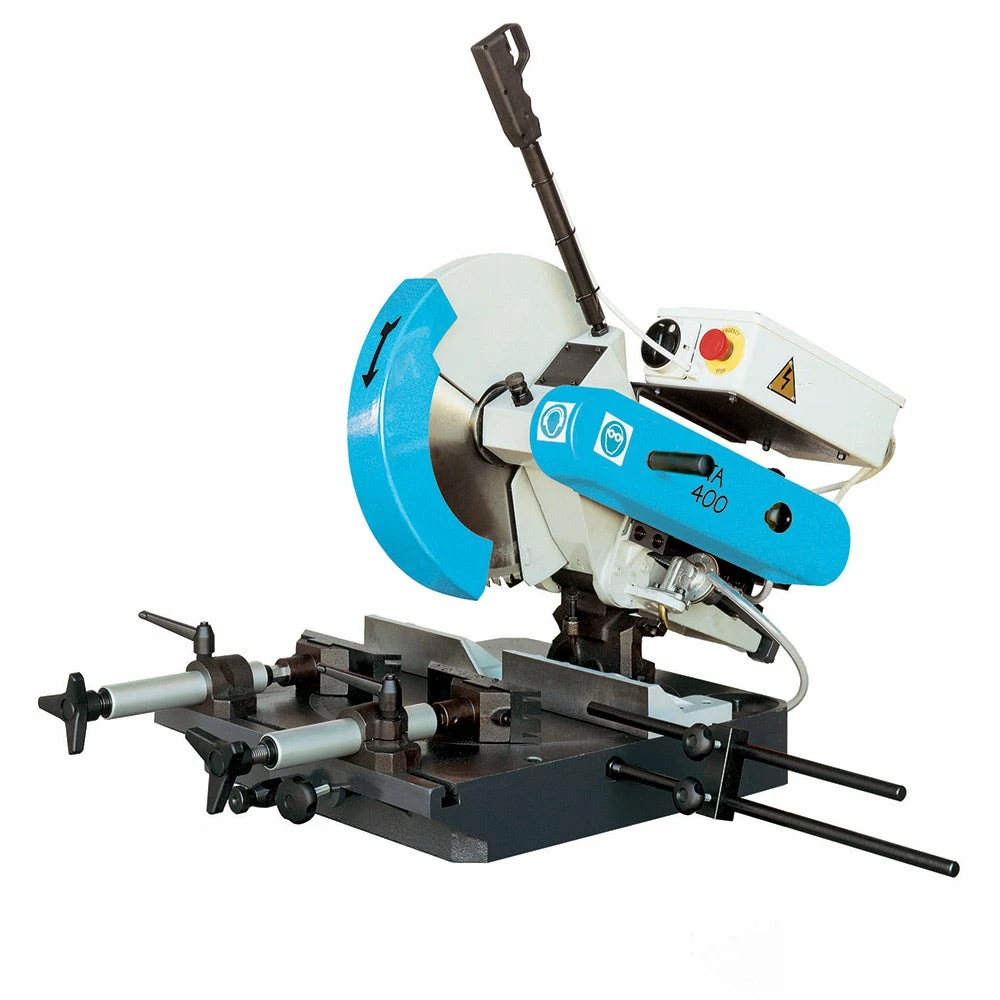

MACC 400mm Non Ferrous Cutting Saw 3 Phase MC-TA400-3

• Italian made quality, extra heavy duty.
• Compound mitre , non-ferrous metal cutting saw.
• Designed for cutting aluminium, copper, brass etc.
• Swivel head 45° right and left.
• Mitre head 45° left.
• Trigger switch operation.
• Twin manual sliding vices with teflon jaws.
• Fully recirculating coolant system.
• Blade sold separately.
• Optional stand available – part# MC-STAND315

Specifications

• Motor: 3HP Three Phase 415V
• Blade Speed: Single Speed 3000rpm
• Blade Size: 400mm
• Blade Bore: 32mm
• Weight: 160kg

Cutting Capacity:

• 90° Solid Cylinder: 60mm / Hollow Cylinder: 140mm / Box: 110 x 110mm / Rectangle: 180 x 100mm
• 45° Solid Cylinder: 60mm / Hollow Cylinder: 130mm / Box: 100 x 100mm / Rectangle: 150 x 100mm
