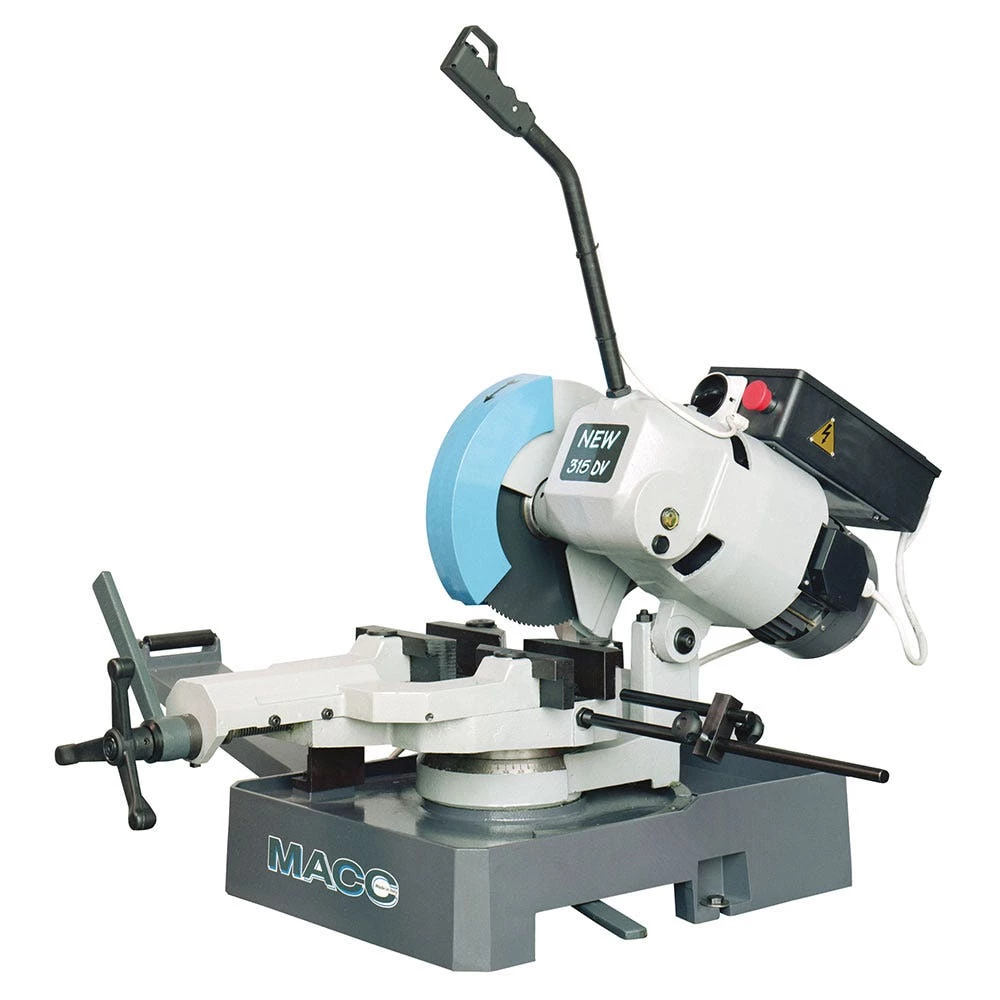

MACC 315mm Double Vice Coldsaw With Clutch MC-NEW315DV-1

• Italian made quality.
• Swivel head 45° left & right.
• Trigger switch operation.
• Quick locking double vice for burr free cutting.
• Blade protection clutch, suitable for cutting profile steels or tube where multiple material thicknesses are being cut in 1 pass. The clutch will protect the cutting teeth and material when passing from the thin easier to cut material into the thick harder to cut material.
• Incorporated recirculating mechanical coolant system supplying coolant to both sides of the blade.
• Adjustable material stop for repetitive production.
• Comes complete with blade.
• Optional stand available – part# MC-STAND315

Specifications

• Motor: 2HP Single Phase
• Blade Speed: Single Speed 40rpm
• Blade Size: 315mm
• Blade Bore: 32mm
• Weight: 165kg

Cutting Capacity:

• 90° Solid Cylinder: 65mm / Hollow Cylinder: 90mm / Box: 85 x 85mm / Rectangle: 120 x 70mm
• 45°Solid Cylinder: 60mm / Hollow Cylinder: 80mm / Box: 70 x 70mm / Rectangle: 80 x 70mm
