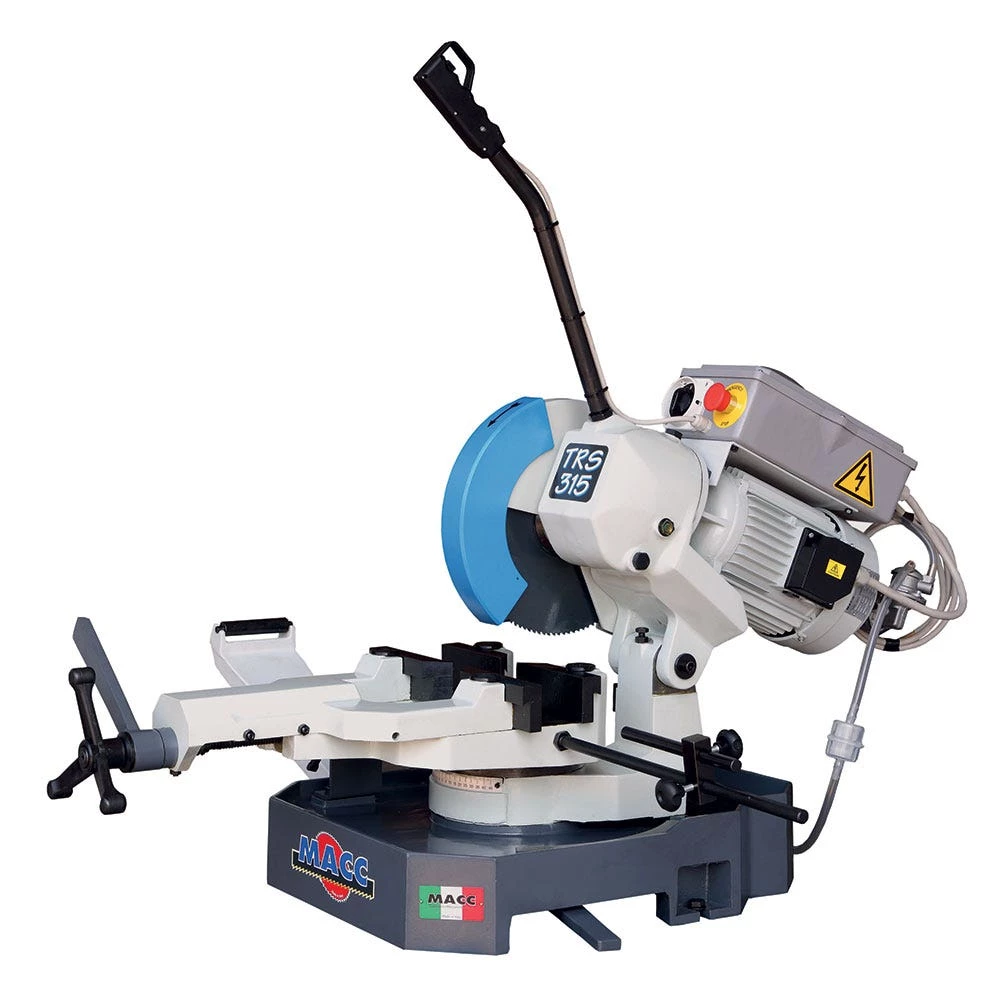

MACC 315mm Double Vice Coldsaw 3 Phase MC-TRS315EDV-3

• Italian made quality.
• Recirculating coolant system with electric pump.
• Creates instant flow of coolant.
• Flood applied coolant creates a cooler cut, for increased finish quality & blade life.
• Swivel head 45° left & right.
• Trigger switch operation.
• Quick locking double vice for burr free cutting.
• Incorporated recirculating mechanical coolant system supplying coolant to both sides of the blade.
• Adjustable material stop for repetitive production.
• Comes complete with blade.
• Optional stand available – part# MC-STAND315

Specifications

• Motor: 3HP Three Phase
• Blade Speed: 2 Speed 40 / 80rpm
• Blade Size: 315mm
• Blade Bore: 32mm
• Weight: 165kg

Cutting Capacity:

• 90° Solid Cylinder: 55mm / Hollow Cylinder: 90mm / Box: 80 x 80mm / Rectangle: 115 x 70mm
• 45° Solid Cylinder: 50mm / Hollow Cylinder: 80mm / Box: 70 x 70mm / Rectangle: 70 x 70mm
