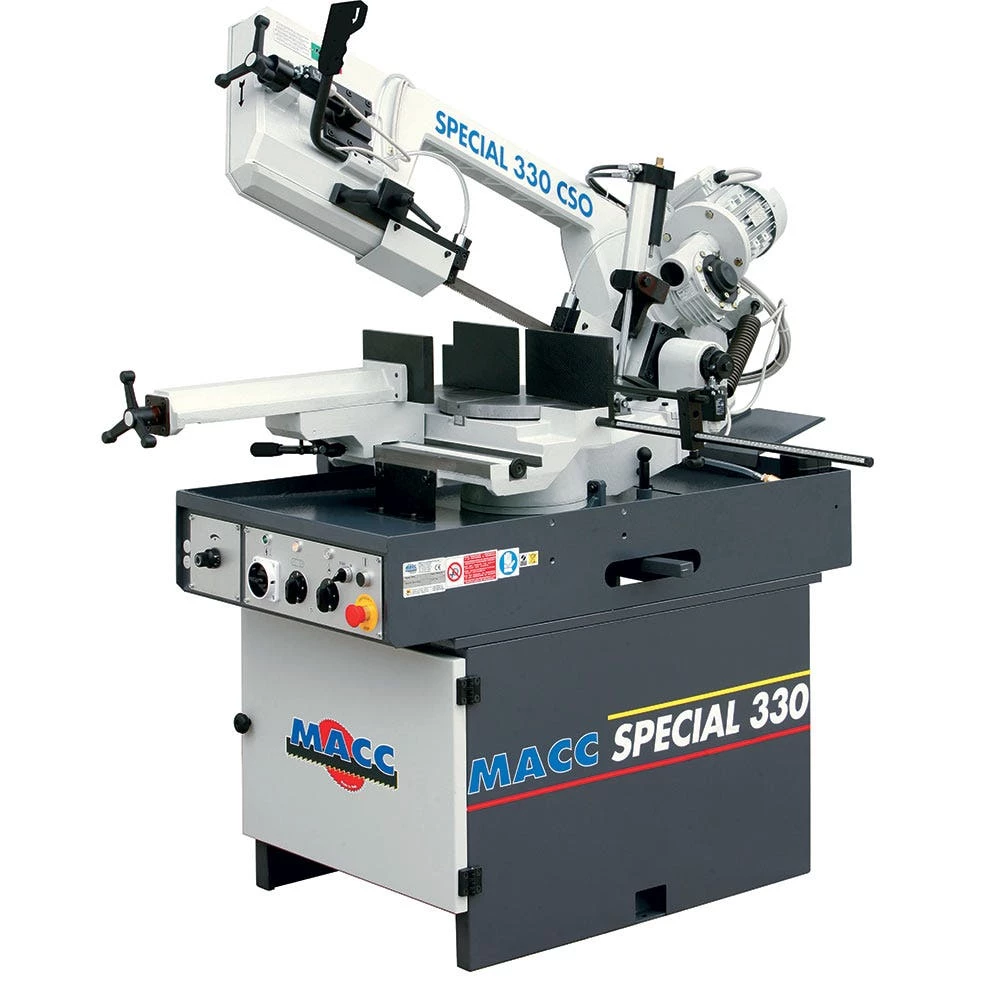

MACC 260mm 240V Swivel Head Dual Mitre Bandsaw MB-330CSO-1

• Italian made quality.
• Swivel head enables 0° to 60° mitre cuts.
• Dual mode operation.
  • Trigger switch with manual downfeed for small quick cuts.
  • Control panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material.
• Dual direction heavy duty vice.
• Incorporated recirculating coolant system.
• Adjustable material stop for repetitive production.
• Comes complete with stand & blade

Specifications

• Motor: 1.5HP Single Phase
• Blade Speed: Single Speed 75mpm
• Blade Size: 27mm x 0.9mm x 3010mm
• Weight: 365kg

Capacity:

• 90° Cut: Cylinder: 260mm / Box: 250 x 250mm / Rectangle: 330 x 220mm
• 45° Right Cut: Cylinder: 225mm / Box: 210 x 210mm / Rectangle: 225 x 160mm
• 60° Right Cut: Cylinder: 130mm / Box: 130 x 130mm / Rectangle: 140 x 130mm
• 45° Left Cut: Cylinder: 215mm / Box: 200 x 200mm / Rectangle: 210 x 160mm
