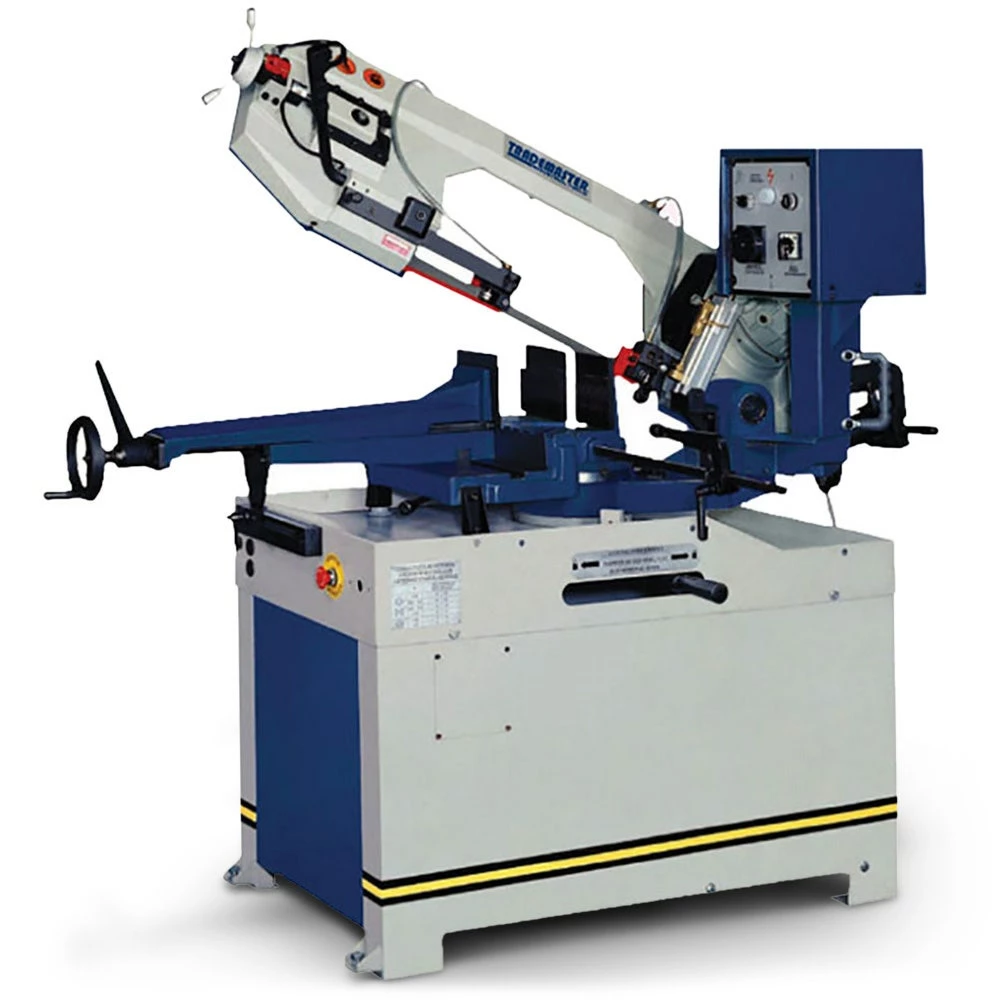

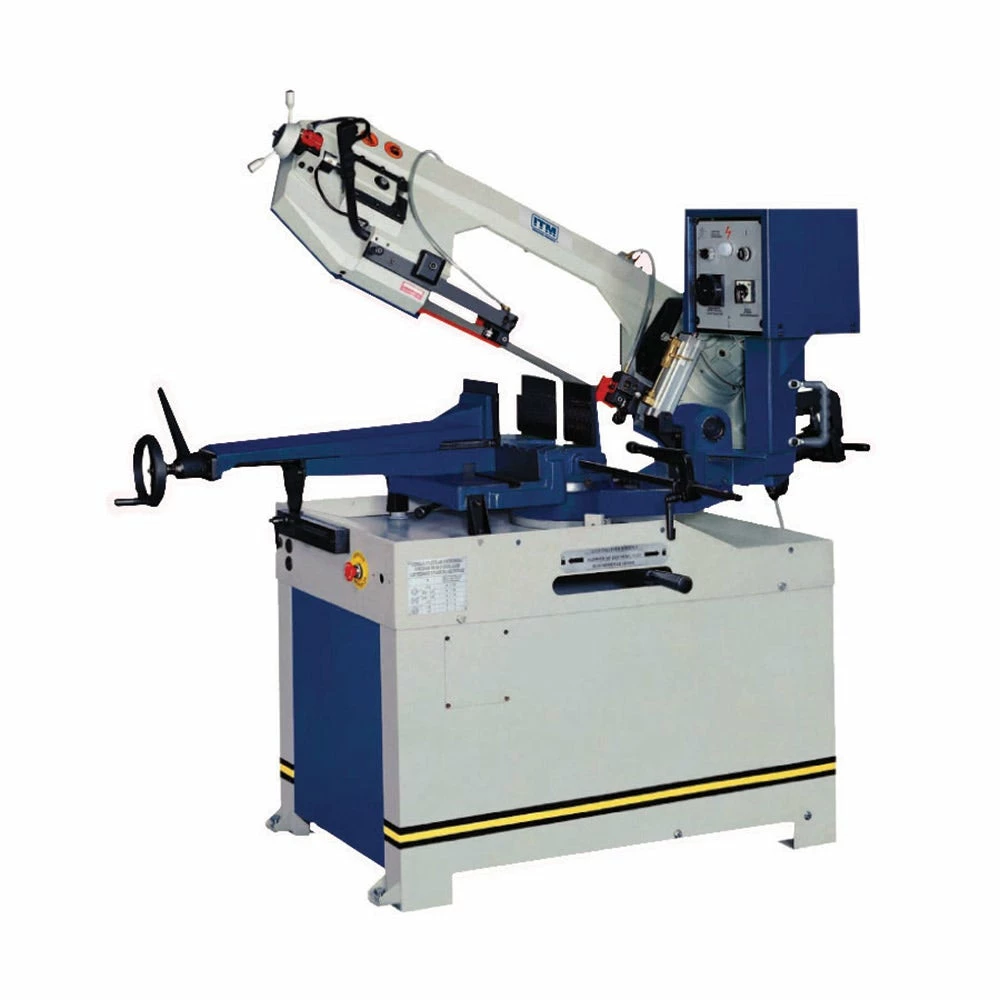

ITM 270mm Swivel Head Dual Mitre Bandsaw 3 Phase WE350DS

• 2 Way swivel head enables 0° to 60° mitre cuts.
• Dual mode operation:.
  • Trigger switch with manual downfeed for small quick cuts.
  • Control panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material.
• 2 speed motor 34 / 68mpm.
• Dual direction heavy duty vice.
• Hydraulic blade tension gauge.
• Incorporated recirculating coolant system.
• Brass chip brush to help prevent blade breakage.
• Adjustable material stop for repetitive production.
• Comes complete with stand & blade

Specifications

• Motor: 2.0HP Three Phase (415V)
• Blade Speed: 2 Speed 34 / 68mpm
• Blade Size: 27mm x 0.9mm x 3160mm
• Bed Height: 890mm
• Weight: 410kg

Cutting capacity:

• 90° – Round: 270mm / Box: 260 x 260mm / Rectangle: 350 x 220mm
• 45° Right – Round: 240mm / Box: 220 x 220mm / Rectangle: 240 x 160mm
• 60° Right – Round: 160mm / Box: 150 x 150mm
• 45° Left – Round: 210mm / Box: 180 x 180mm / Rectangle: 180 x 180mm
