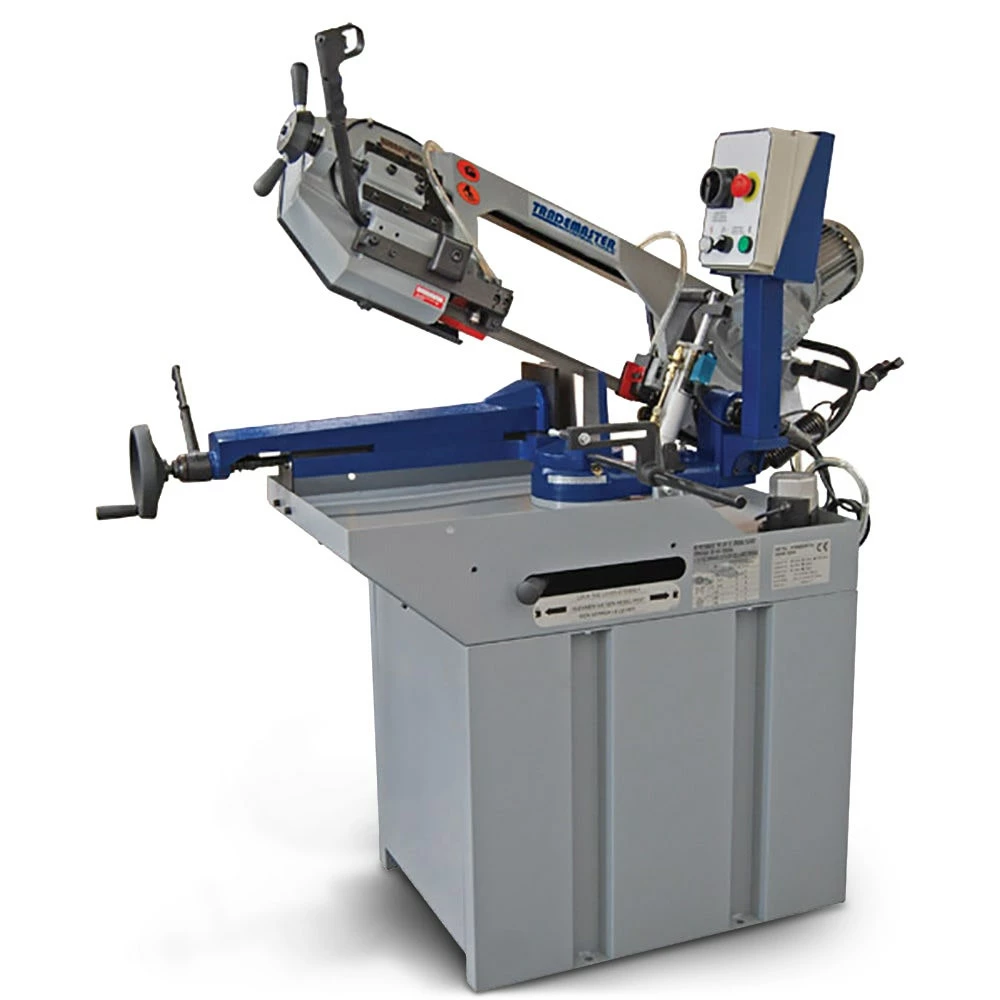

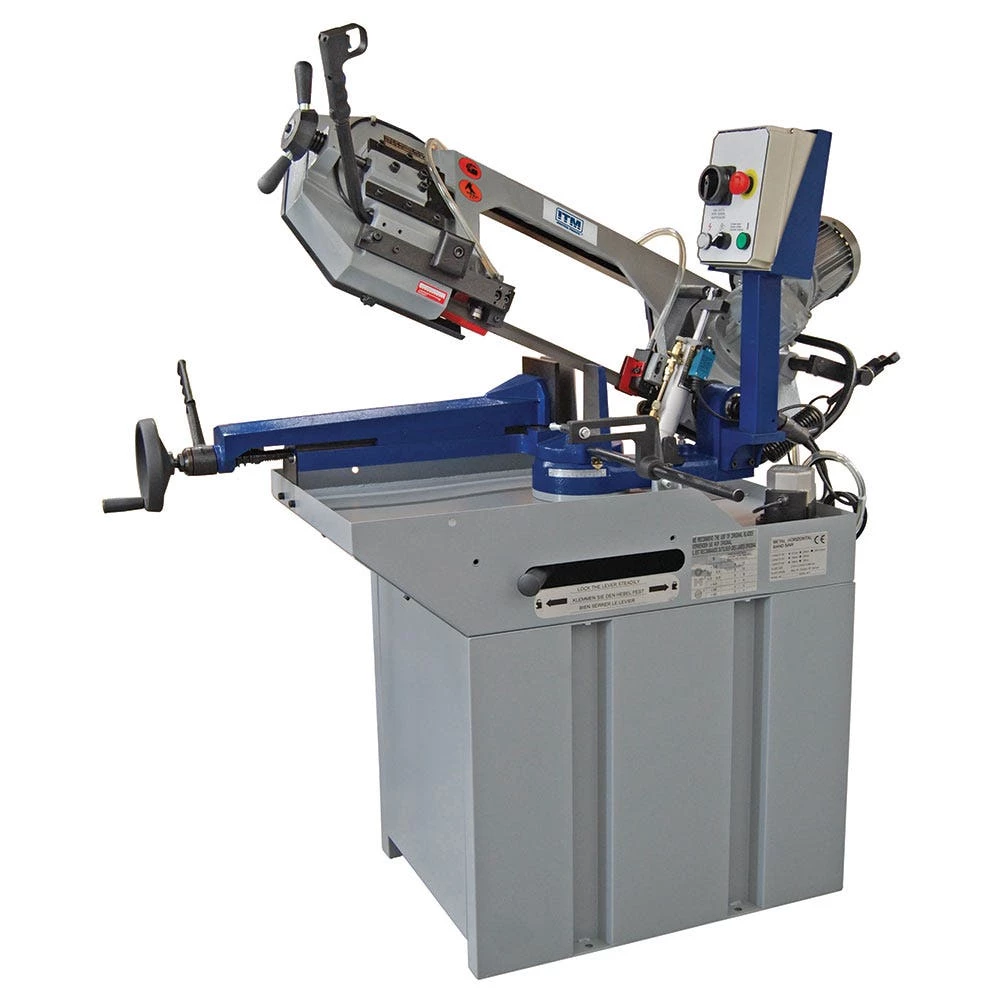

ITM 227mm Swivel Head Bandsaw 3 Phase WP270SH-3

• Swivel Head enables 0 to 60 degree mitre cuts
• Dual Mode Operation – Trigger Switch with manual downfeed for small quick cuts – Control Panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material
• Incorporated recirculating coolant system
• Adjustable material stop for repetitive production
• Bandsaw comes complete with stand & blade

Specifications

• Motor: 1.5HP Three Phase
• Blade: 2 Speed 36 / 72mpm
• Blade Size: 27mm x 0.9mm x 2455mm
• Bed Height: 885mm
• Weight: 216kg

Cutting capacity:

• 90° – Round: 227mm / Box: 220 x 220mm / Rectangle: 260 x 110mm
• 45° Right – Round: 150mm / Box: 145 x 145mm / Rectangle: 200 x 145mm
• 60° Right – Round: 90mm / Box: 85 x 85mm
