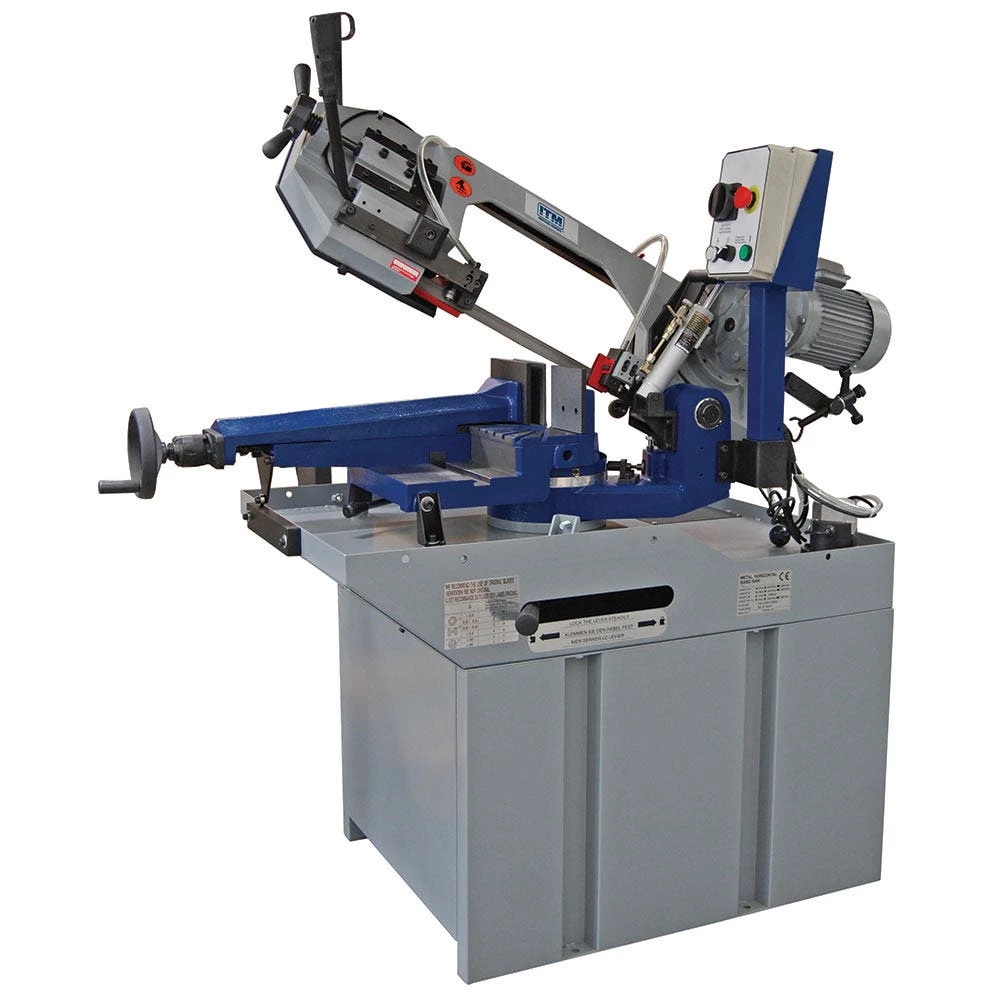

ITM 227mm 240V Swivel Head Dual Mitre Bandsaw Variable Speed WP275DSV-1

• 2 Way swivel head enables 0 °to 60° mitre cuts
• Variable speed motor for cutting a wide range of materials
• Dual mode operation:
  • Trigger switch with manual downfeed for small quick cuts
  • Control panel with fully adjustable hydraulic down feed
• And automatic shut-off at end of cut, for cutting larger material
• Dual direction heavy duty vice
• Incorporated recirculating coolant system
• Brass chip brush to help prevent blade breakage
• Adjustable material stop for repetitive production
• Comes complete with stand & blade
• Optional blade tension gauge available

Specifications

• Motor: 1.5HP Single Phasee
• Blade Speed: Variable 20-85 mpm
• Blade Size: 27mm x 0.9mm x 2455mm
• Bed Height: 900mm
• Weight: 285kg

Cutting capacity:

• 90° – Round: 227mm / Box: 220 x 220mm / Rectangle: 260 x 110mm
• 45° Right – Round: 150mm / Box: 145 x 145mm / Rectangle: 200 x 125mm
• 60° Right – Round: 90mm / Box: 85 x 85mm
• 45° Left – Round: 110mm / Box: 110 x 110mm / Rectangle: 160 x 110mm
