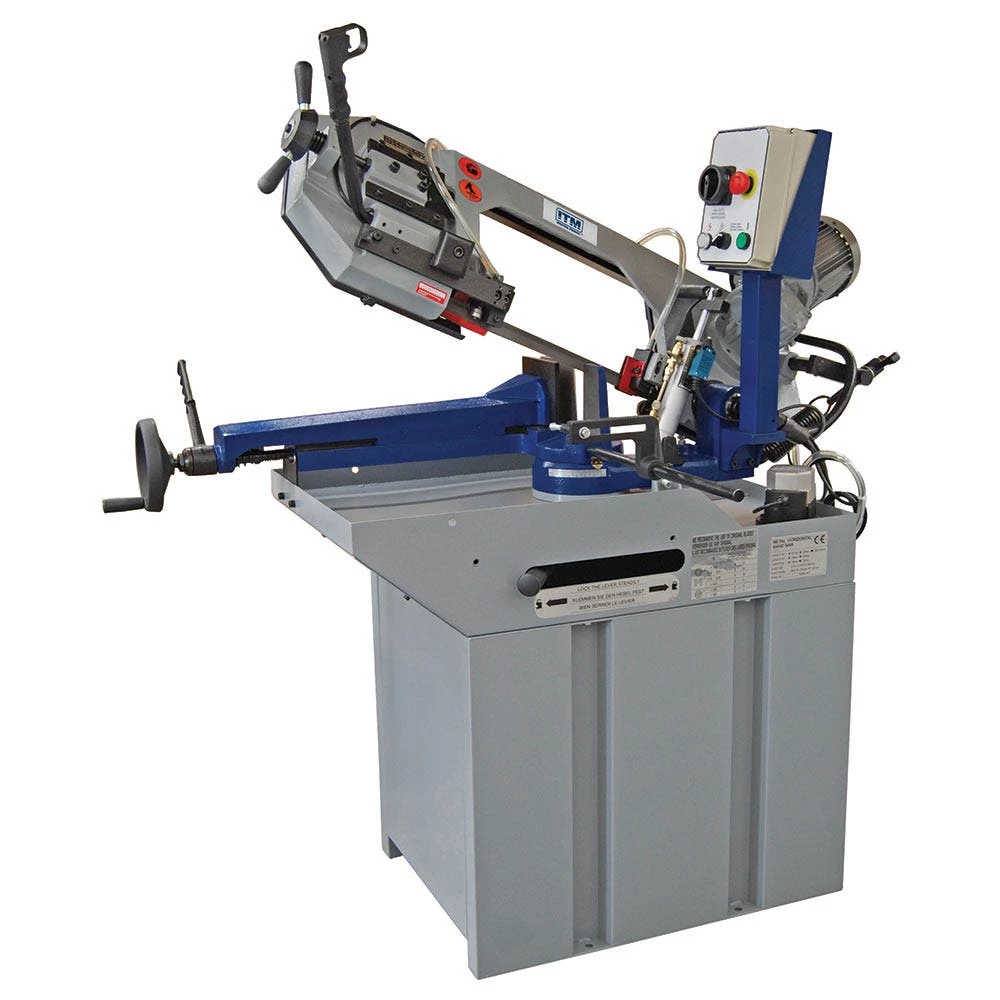

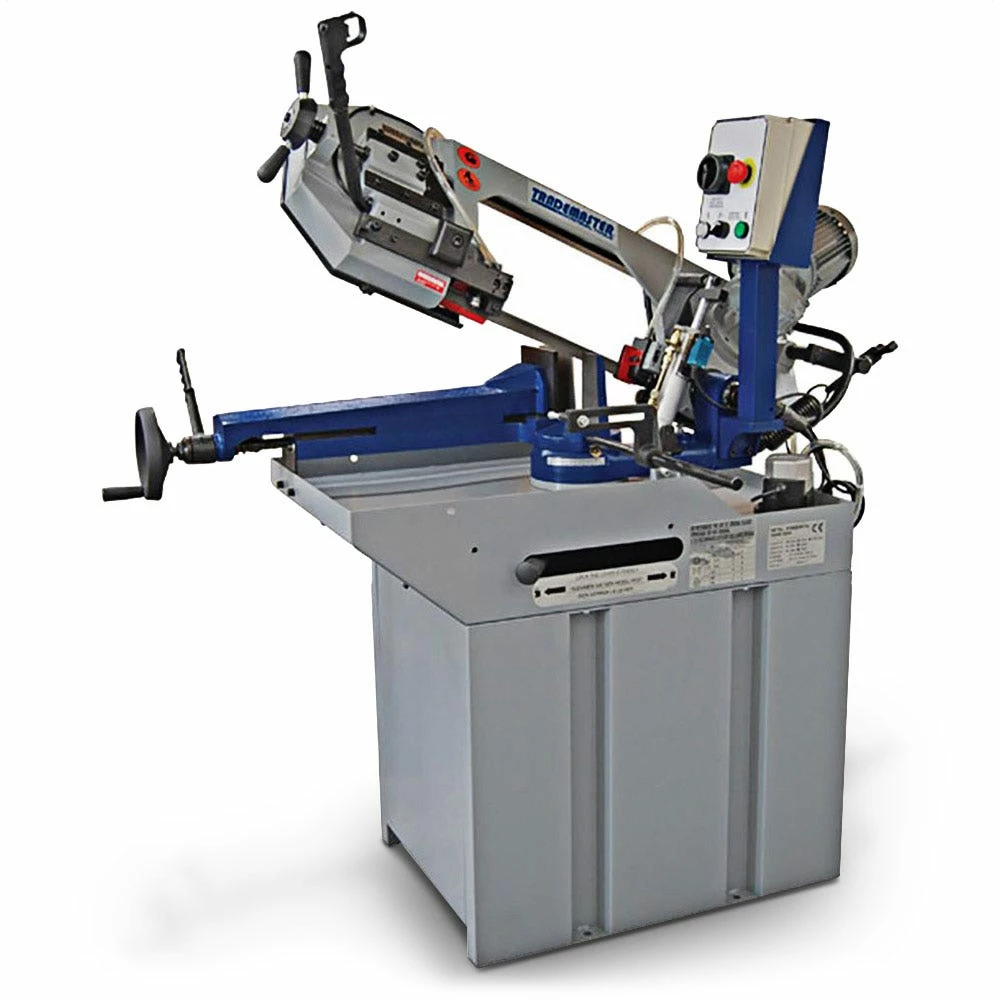

ITM 227mm 240V Swivel Head Bandsaw WP270SH-1

• Swivel Head enables 0 to 60 degree mitre cuts
• Dual Mode Operation – Trigger Switch with manual downfeed for small quick cuts – Control Panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material
• Incorporated recirculating coolant system
• Adjustable material stop for repetitive production
• Bandsaw comes complete with stand & blade

Specifications

• Motor: 1.5HP Single Phase
• Blade Speed: Single Speed 72mpm
• Blade Size: 27mm x 0.9mm x 2460mm
• Bed Height: 885mm
• Weight: 216kgs

Cutting capacity:

• 90° Round: 227mm 90° Square: 220 x 220mm 90° Rectangular: 260 x 110mm
• 45° Round: 150mm 45° Square: 145 x 145mm 45° Rectangular: 200 x 145mm
• 60° Round: 90mm 60° Square: 85 x 85mm
