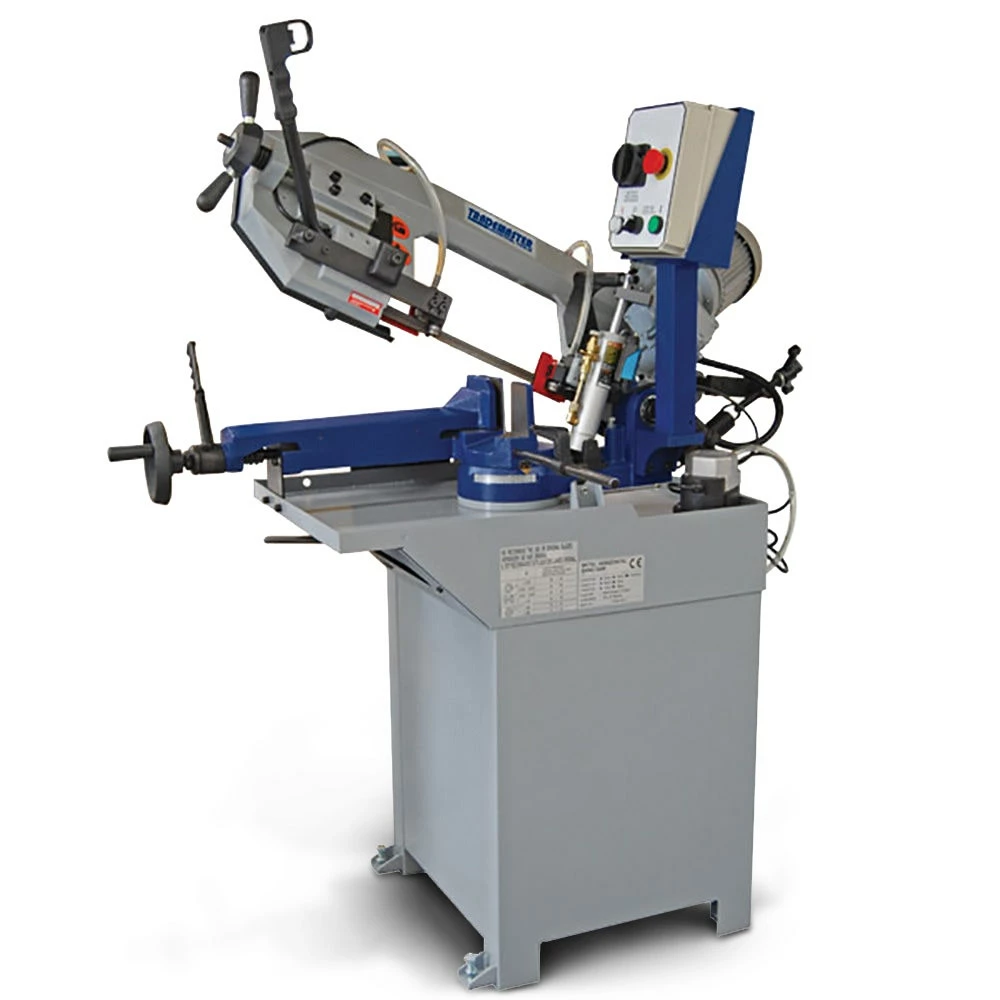

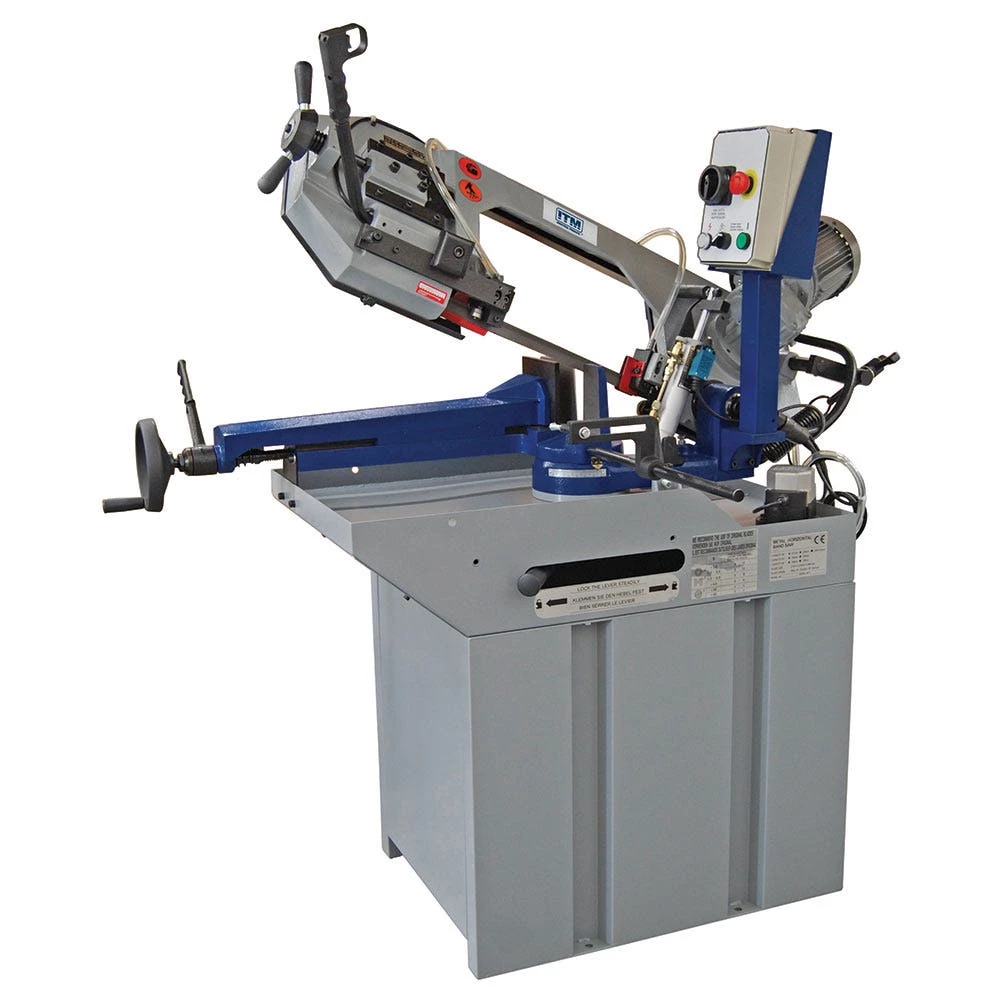

ITM 170mm Swivel Head Bandsaw 3 Phase WP210SH-3

• Swivel head enables 0° to 60° mitre cuts.
• Dual mode operation.
• Trigger switch with manual downfeed for small quick cuts.
• Control panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material.
• Incorporated recirculating coolant system.
• Adjustable material stop for repetitive production.
• Comes complete with stand & blade

Specifications

• Motor: 1.0HP Three Phase
• Blade Speed: 2 Speed 40 / 80mpm
• Blade Size: 19mm x 0.9mm x 2110mm
• Bed Height: 895mm
• Weight: 156kg

Cutting capacity:

• 90° – Round: 170mm / Box: 170 x 170mm / Rectagle: 210 x 95mm
• 45° Right – Round: 120mm / Box: 110 x 110mm
• 60° Right – Round: 70mm / Box: 60 x 60mm
