EUROBOOR 37V 36mm Magnetic Drill ECO036

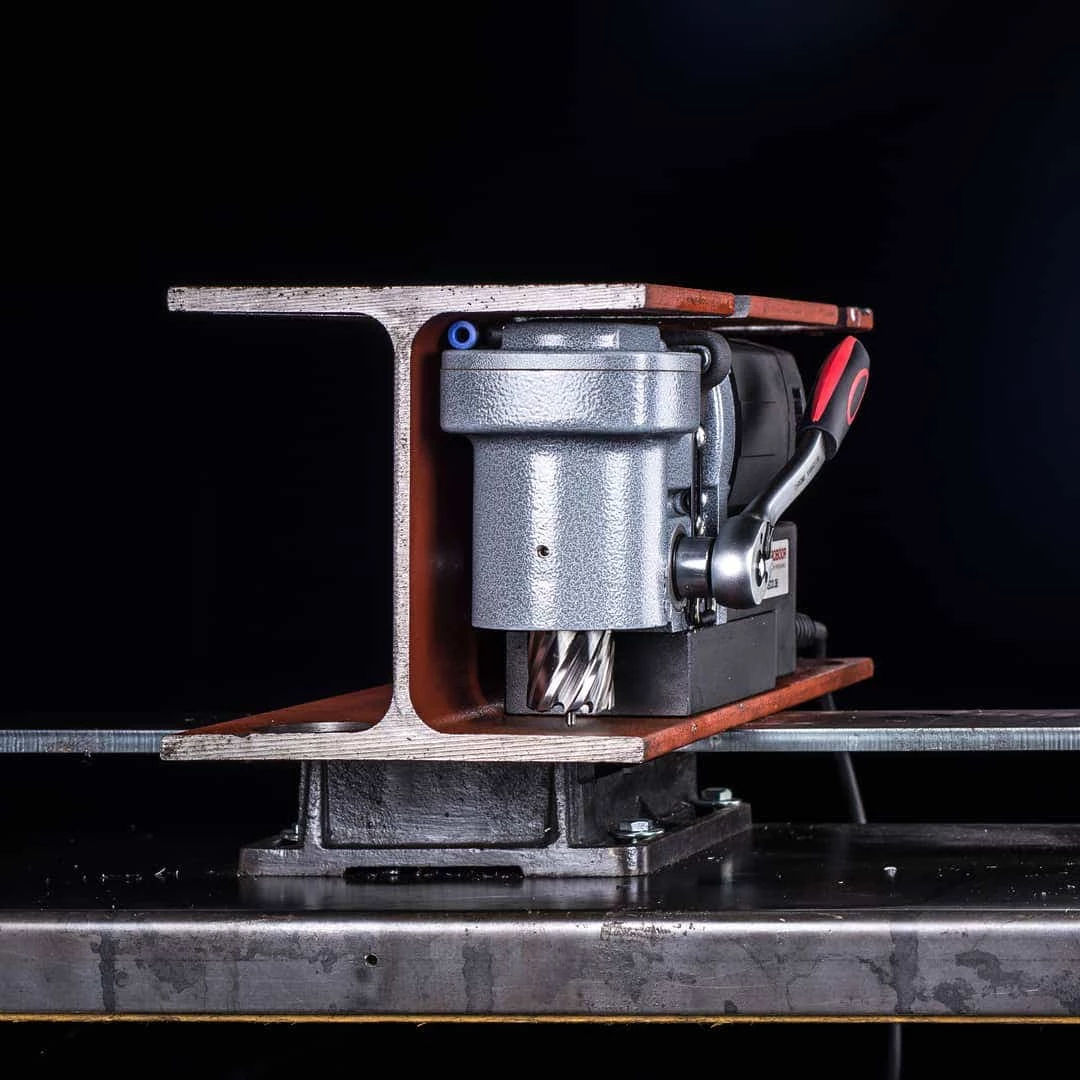

The Euroboor ECO.36 magnetic core drilling machine is the lowest drilling machine in the market, measuring only 165 mm (6 1/2″) in height. This magnetic core drilling machine is perfect for drilling in spaces with limited heights such as H-beams, steel structures, plates, profiles, etc. The portable ECO.36 is equipped with a powerful magnet, user friendly Quick Connect cutter fitment system, and easy release / lock feed handle for both left and right operation.

• One-speed gearbox
• User friendly Quick-Connect cutter fitment system
• Integrated motor cable
• Carrying handle and safety strap attachment
• Right/left mount ability of detachable ratchet feed handle

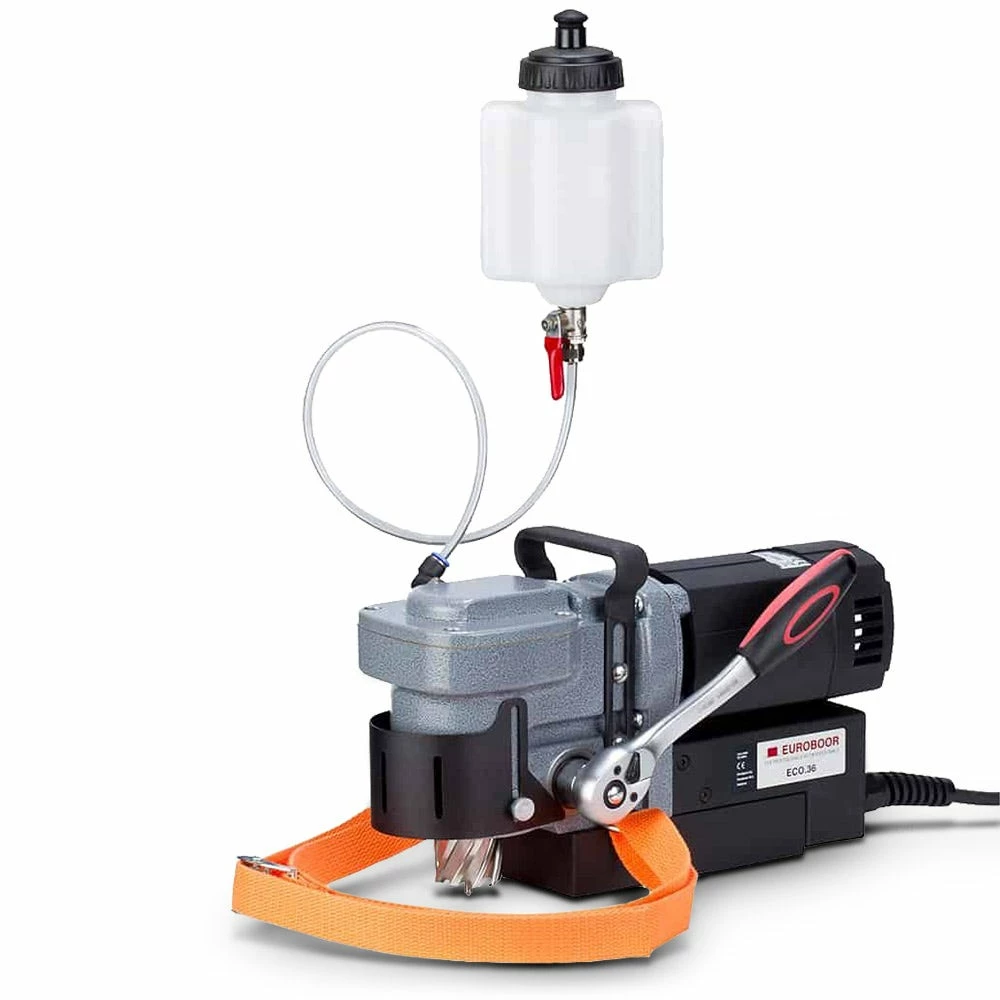

• Integrated tool cooling and lubrication
• Removable and slidable safety guard
• Lubrication bottle with magnet attachment
• Strong dual coil CNC machined magnet

Specifications

• Annular cutting: Ø 12 – 36mm
• Twist drilling: Ø 1 – 14mm
• Countersinking: Ø 10 – 40mm
• In-corner drilling:
  • 0˚ – 50mm (center to edge)
  • 90˚ – 53mm (center to edge)
  • 45˚ – 60mm (center to edge)
• Stroke: 40mm
• Magnet (l x w x h): 160 x 80 x 37mm
• Magnetic force: 1200kg
• Motor power: 1050W
• Total power: 1100W
• Speed (no load): 700rpm
• Speed (load 1050 W): 400rpm
• Spindle (Weldon): 19.05mm
• Voltage:
  • 110 – 120 V / 60 Hz
  • 220 – 240 V / 50 – 60 Hz

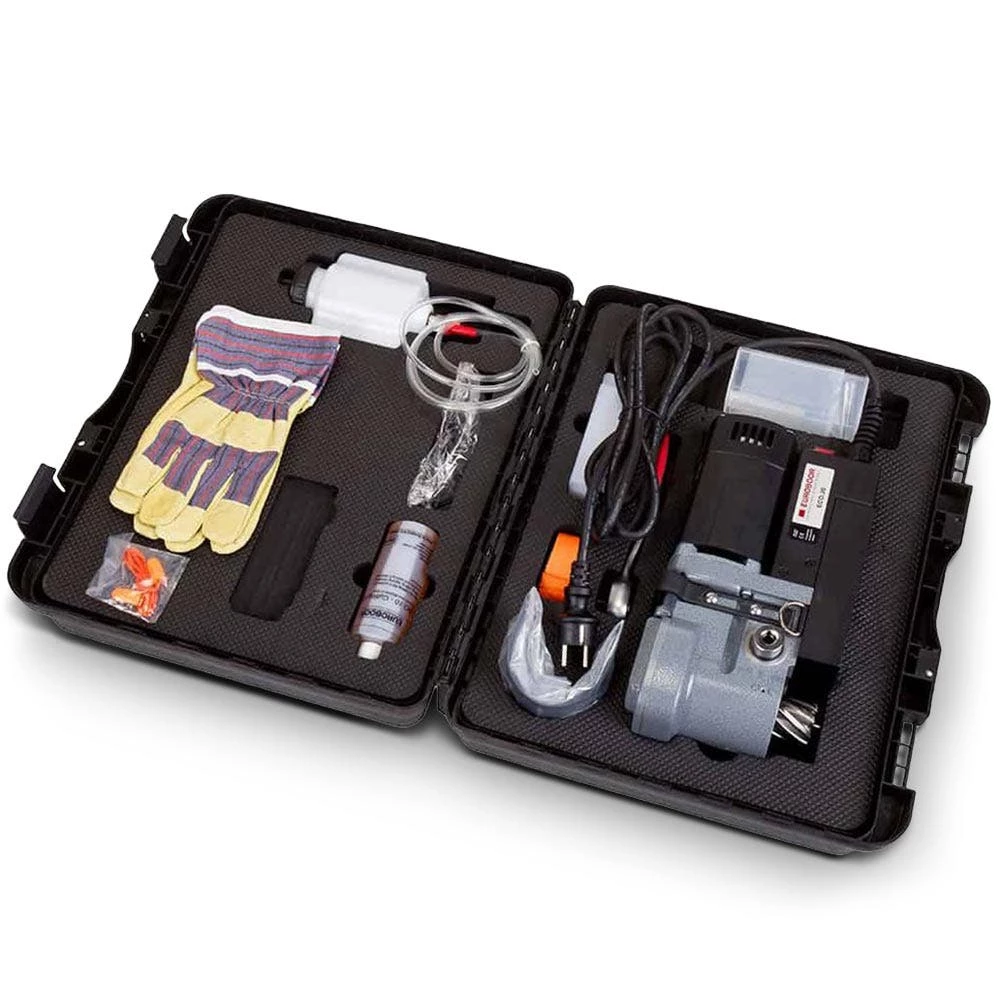

Includes

• 1 x ECO.36 Magnetic drilling machine
• 1 x Safety guard
• 1 x Ratchet feed handle
• 1 x Hex key 3 mm
• 1 x Lubrication system
• 1 x Safety strap
• 1 x Bottle (200 ml) of IBO.10 cutting oil
• 1 x User manual
• 1 x Safety ear protection
• 1 x Safety goggles
• 1 x Safety gloves
