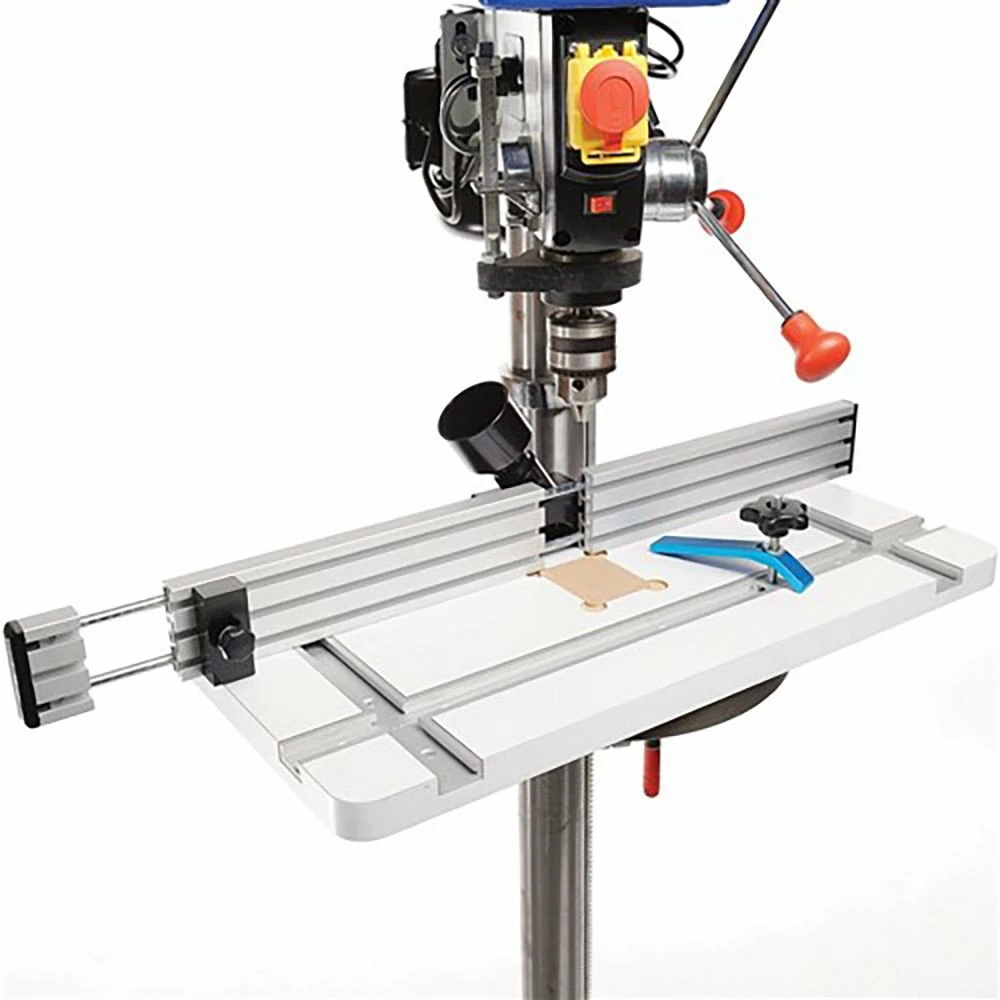

CARBATEC Drill Press Table DPT-1

This accessory effectively expands the work area for your drill press allowing you to work properly supported, with larger projects on small tables. The telescopic fence adjusts allowing the stop to be set to allow for repeatability in drilling multiple items.

The single hold-down clamp acts as an additional hand and has the ability to hold those smaller workpieces safely.

Table size – 600mm x 300mm x 25mm

• Removable table insert. (Easy to fabricate your own replacements if needed)
• Telescopic fence with adjustable stop for repetitive drilling.
• T-Tracks built-in, with a hold-down clamp.
• Dust Port suited to Wet/Dry Style Shop Vacs
• *May require modification to fit your Drill Press

Includes

• Table
• Mounting hardware
• 1 x Hold-down clamp
• Fence with dust port

*NB: The table features two countersunk threaded inserts on the underside, for mounting to your drill press table with the bolts provided, through the slots in your table. However, due to the diversity of Drill Press tables on the market, we cannot guarantee this will mount to your table. Fits most round tables with X slots. If your table has slots but does not line up, we recommend placing the table in position; marking with a pencil where your slots align, and drilling holes for new threaded inserts in the correct alignment. If your table does not have through table slots, you may want to consider a “clamping” arrangement beneath the table, with an additional piece of timber screwed to the underside. Mounting styles are not limited to these suggestions, however.

*Drill press not included.
